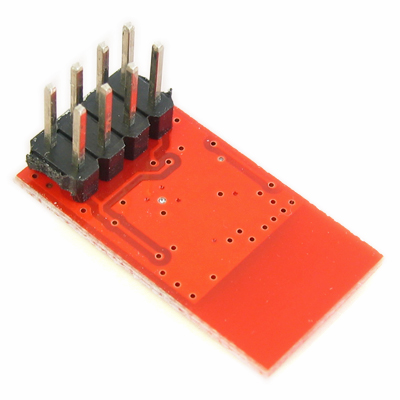

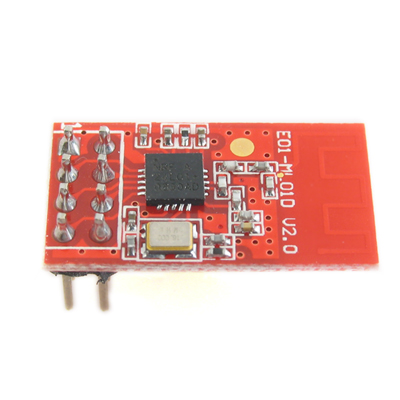

RF-1001D 0dBm 2.4G RF Module

Maximum power: 0dbm
Measured distance: 110m@250K
Air Rate: 250K/1M/2M
Antenna: On-board PCB antenna
Working frequency: 2.4000 – 2.525GHZ
Communication Interface: Standard SPI Mode 0, the maximum rate is 10Mbps

Introduce

   RF-1001D is our latest 2.4G wireless communication module. Currently, it has a stable mass production. It is suitable for a variety of scenarios. The main chip of RF-1001D is nRF24L01P, and it is imported from Norway. The resistance and the capacitance are made of imported materials, especially crystals, we use a wide temperature range with high precision crystal, in order to ensure its industrial characteristic.


Parametric Description

Num

Parametric Name

Detailed Description

1

Main chip

nRF24L01P, from Norway

2

Module size

12.5* 22.5mm

3

Interface

2*4*2.54mm, you can use the universal plate and DuPont line

4

Supply voltage

1.9-3.6V DC

5

Communication voltage


0.7VDD-5.2VDC, VDD is the supply voltage of module

6

Measured distance

110m@250K

7

Maximum power

0dbm

8

Air Rate

250K/1M/2M

9

Shutdown Current

About 1uA. Test Conditions: CE=0, power-down mode, VDD=3.0V.

10

Power Level

4 adjustable rating

11

Transmitting current

About 11.3mA

12

Receiving current

About 13.5mA

13

Antenna

On-board PCB antenna

14

Communication Interface

Standard SPI Mode 0, the maximum rate is 10Mbps

15

Transmitting length

Single data packet is 1-32 bytes

16

Receiving length

Single data packet is 1-32 bytes

17

RSSI Support

Does not support the true meaning of RSSI, supports packet loss statistics

18

Reception sensitivity

-94dbm@250Kbps

19

Work temperature

-30 - +85

20

Work humidity

Relative humidity :10% - 90%

21

Storage temperature

-40 - +125

22

Working frequency

2.4000 – 2.525GHZ


Notice:

 1.  Avoid body touch the electronic components.

 2.  Please ensure that the power supply has a smaller ripple , and must avoid frequent  significant jitter.

 3.  Antenna mounting structure has a greater impact on module performance , please  ensure the antenna exposed.

 4.  Avoid harmonic interference from other wireless devices bands

 5.  Please make the RF module stay away from the crystal.
