RF-1101S 10dbm RF Module

Maximum power：0dbm
Measured distance: 110m@250K
Air Rate: 250K/1M/2M
Antenna: On-board PCB antenna
Working frequency: 425MHz – 525MHZ
Communication Interface: Standard SPI Mode 0, the maximum rate is 10Mbps

Description
Download

Introduce

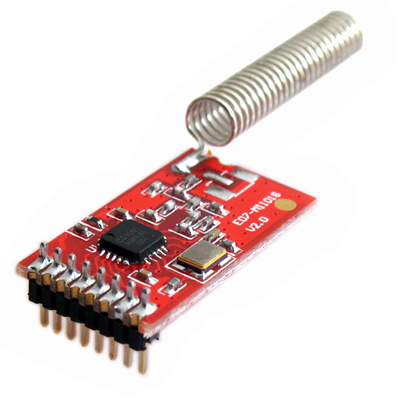

RF-1101S is our latest 433MHz wireless communication module. Currently, it has a stable mass production. It is suitable for a variety of scenarios. The main chip of RF-1101S is CC1101, and it is imported from TI. The resistance and the capacitance are made of imported materials, especially crystals, we use a wide temperature range with high precision crystal, in order to ensure its industrial characteristic.

Parametric Description

Num	Parametric Name	Detailed Description
1	Main chip	CC1101, from Norway

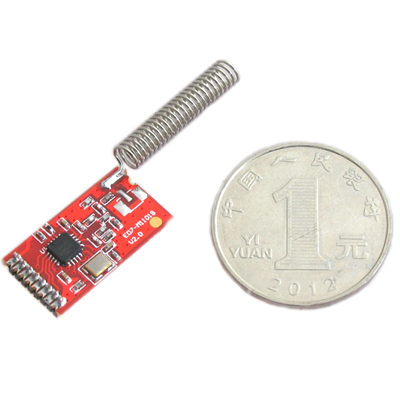

2	Module size	12* 21.3mm

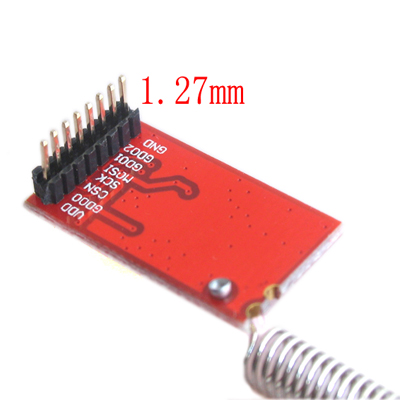

3	Interface	181.27mm, you can use the universal plate and DuPont line
4	Supply voltage	1.9-3.6V DC
5	Communication voltage	0.7VDD-5.2VDC, VDD is the supply voltage of module
6	Measured distance	370m@250K
7	Maximum power	10dbm
8	Air Rate	1.2K-500K. Due to the physical properties of the band 433M, Recommended no more than 20Kbps
9	Shutdown Current	About 0.6uA.
10	Power Level	Multi-adjustable
11	Transmitting current	About 29.2mA@433MHz
12	Receiving current	About 16mA
13	Antenna	Spring antenna
14	Communication Interface	Standard SPI Mode 0, the maximum rate is 10Mbps
15	Transmitting length	Single data packet is 1-64 bytes
16	Receiving length	Single data packet is 1-64 bytes
17	RSSI Support	Support
18	Reception sensitivity	-117dbm@1.2Kbps
19	Work temperature	-30 - +85℃
20	Work humidity	Relative humidity :10% - 90%
21	Storage temperature	-40 - +125℃
22	Working frequency	387MHz – 464MHZ
