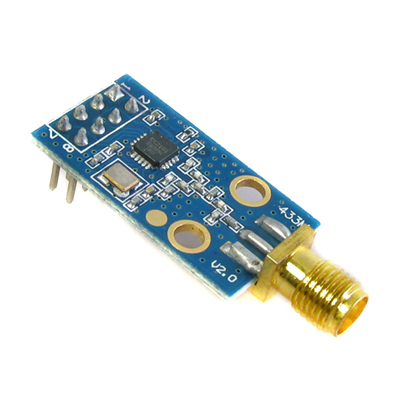

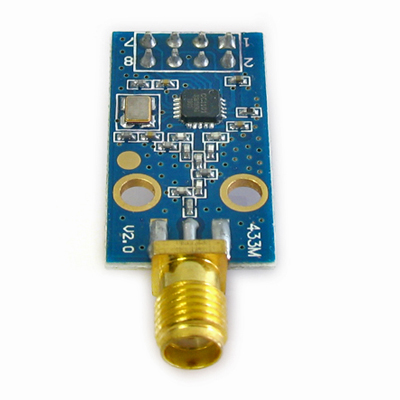

RF-1101D-SMA 10dbm RF Module
Maximum power：10dbm
Measured distance: 410m@250K
Air Rate: 1.2K-500K.
Antenna: SMA external antenna
Working frequency: 425MHz – 525MHZ
Communication Interface: Standard SPI Mode 0, the maximum rate is 10Mbps
Introduce
RF-1101D-SMA is our latest 433MHz wireless communication
module. Currently, it has a stable mass production. It is suitable for a
variety of scenarios. The main
chip of RF-1101D-SMA is CC1101,

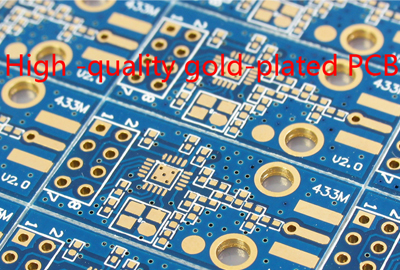

and it is imported from TI. The resistance and the capacitance are made of imported materials, especially crystals, we use a wide temperature range
with high precision crystal, in order to ensure its industrial characteristic.
Parametric Description
| Num |
Parametric Name |
Detailed Description |
| 1 |
Main chip |
CC1101, from Norway |
| 2 |
Module size |
15* 28mm |
| 3 |
Interface |
2*4*2.54mm, you can use the universal
plate and DuPont line |
| 4 |
Supply voltage |
|
| 5 |
Communication voltage |
0.7VDD-5.2VDC, VDD is the supply voltage
of module |
| 6 |
Measured distance |
410m@1.2K |
| 7 |
Maximum power |
10dbm |
| 8 |
Air
Rate |
1.2K-500K. Due to the physical properties
of the band 433M, Recommended no more than 20Kbps |
| 9 |
Shutdown Current |
About 0.6uA. |
| 10 |
Power Level |
Multi-adjustable |
| 11 |
Transmitting current |
About 29.2mA@433MHz |
| 12 |
Receiving current |
About 16mA |
| 13 |

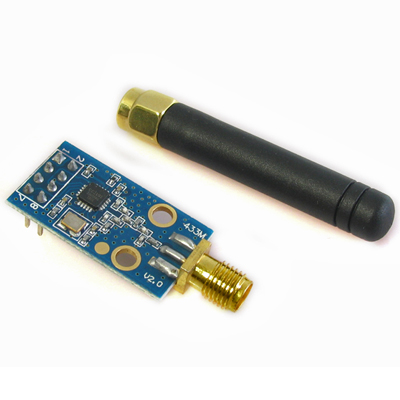

Antenna |
SMA external antenna |
| 14 |
Communication Interface |
Standard SPI Mode 0, the maximum rate is
10Mbps |
| 15 |
Transmitting length |
Single data packet is 1-64 bytes |
| 16 |
Receiving length |
Single data packet is 1-64 bytes |
| 17 |
RSSI Support |
Support |
| 18 |
Reception sensitivity |
-117dbm@1.2Kbps |
| 19 |
Work temperature |
-30 - +85℃ |
| 20 |
Work humidity |
Relative humidity :10% - 90% |
| 21 |
Storage temperature |
-40 - +125℃ |
| 22 |
Working frequency |
387MHz – 464MHZ |
Notice:
1. Avoid body touch the electronic components.
2. Please ensure that the power supply has a smaller ripple , and must avoid frequent significant jitter.
3. Antenna mounting structure has a greater impact on module performance , please ensure the antenna exposed.
4. Avoid harmonic interference from other wireless devices bands
5. Please make the RF module stay away from the crystal.
