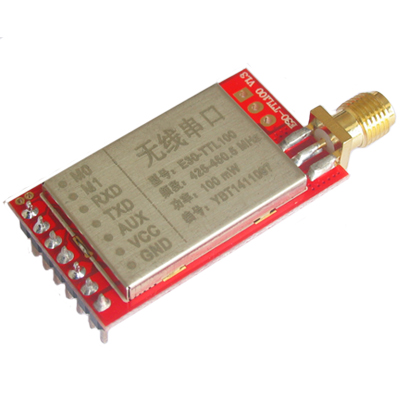

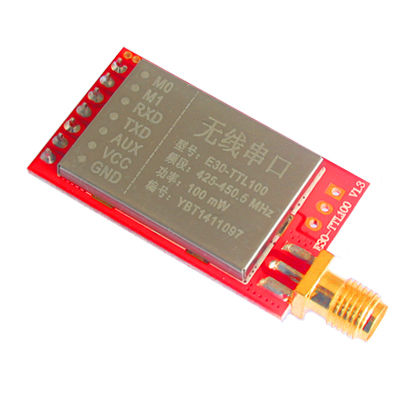

RF-TTL-SMA 20dbm RF Module

Maximum power:20dbm
Measured distance: 2000m@1K
Antenna: SMA external antenna
Working frequency: 425MHz – 450.5MHZ, 100KHz stepper
Communication Interface: UART serial port, 8N1/8E1/8O1, from 1200 to 115200 a total of 8 kinds baud rate

Introduce

   RF-TTL-SMA is our latest 100mW wireless transmission module. It working in 425-450.5MHz band and using serial port to send or receive data. Its advantage is that centralized power density, transmission distance(Its transmission distances can reach 2000 meters.) and strong anti-jamming capability. Especially the ability to penetrate diffraction, it is more strong than other band.

RF-TTL-SMA having the FEC forward error correction algorithm, the coding efficiency is higher and the error correction capability is strong. When in the case of burst interference, it can take the initiative to correct the interference packets , that greatly improving the reliability and transmission distance. The module also having data encryption and compression function. When transmission data in the air, it is random and unsafe. But after the module rigorous encryption and decryption algorithm, the data interception becomes meaningless and improves transport security.

The module has four operating modes , and can freely switch at runtime , in the power saving mode , current consumption is only ten of uA, it is very suitable for ultra-low- power applications.



Parametric Description

Num

Parametric Name

Detailed Description

1

Module size

20* 36mm

2

Interface

1*7*2.54mm, you can use the universal plate and DuPont line

3

Supply voltage

1.9-3.6V DC

4

Communication voltage

0.7VDD-5.2VDC, VDD is the supply voltage of module

5

Measured distance

2000m@1K

6

Maximum power

20dbm

7

Air Rate

8 adjustable rating

8

Dormancy Current

About 1.7uAM1 =1 M0 = 1

9

Power Level

8 adjustable rating

10

Transmitting current

89mA@100mW output

11

Receiving current

14.5mA@Mode 0 and 1. The lowest is about 20uA@Mode 2 + 2s wake up

12

Antenna

SMA external antenna

13

Communication Interface

UART serial port, 8N1/8E1/8O1, from 1200 to 115200 a total of 8 kinds baud rate

14

Transmitting length

Single data packet is 256 bytes

15

Receiving length

Single data packet is 256 bytes

16

RSSI Support

Built-in intelligent processing

17

Reception sensitivity

-119dbm@1Kbps

18

Work temperature

-30 - +85

19

Work humidity

Relative humidity :10% - 90%

20

Storage temperature

-40 - +125

21

Working frequency

425MHz – 450.5MHZ, 100KHz stepper



Module Features

   Transmission distance of 2000 meters

   Multiple baud

   -119dBm Receiver sensitivity

   Ultra-low -power receive

   Four operation modes

   Sleep current is only 1.7uA

   Air wake-up function

   Double ring buffer 256Bytes

   Built-in watchdog , never crash

   Software FEC correction , data compression

   Support voltage reading function

   Frequency 425 - 450.5M, 256 channels

   Efficient encryption algorithms , error correction function


Application

   Wireless meter reading

   Wireless Sensor

   Smart Home

   Intelligent Robot

   Consumer Electronics

   Street lighting control

   High-voltage monitoring

   Environmental Engineering

   Automated data collection

   Remote control and monitoring

   Other wireless transmission applications



Notice:

   1.  Avoid body touch the electronic components.

   2.  Please ensure that the power supply has a smaller ripple , and must avoid frequent significant jitter.

   3.  Antenna mounting structure has a greater impact on module performance , please ensure the antenna exposed.

   4.  Avoid harmonic interference from other wireless devices bands

   5.  Please make the RF module stay away from the crystal.
