ASK-03 Lab Project LCD Starter Kit

1602 LCD Module
Resistor Kits
DIY Starter Kit
Lab Project LCD Starter Kit



    With this Starter Kit for Electronic Project, you can get to Advanced Electronic World easily!

    You can use it to do many projects, such as:

        1. How to use button to control LED

        2. How to control six Leds by digital output pins

        3. How to use various of LEDs to create car traffic light and pedestrian traffic light

        4. How to use potentiometer to control the LED on PWN pin

        5. How to use photocell to control the blinking rate of an LED

        6. How to use potentiometer to control the servo motor

        7. How to use tilt switch to control an LED

        8. How to use NPN transistors to create touch switch

        9. How to use thermistor to control blink of an LED

        10. How to make an old school buzzer game

        11. Use potentiometer to control RGB

        12. Use Relay to switch to control two LED

        13. Test servo motor

        14. Test 1602 LCD

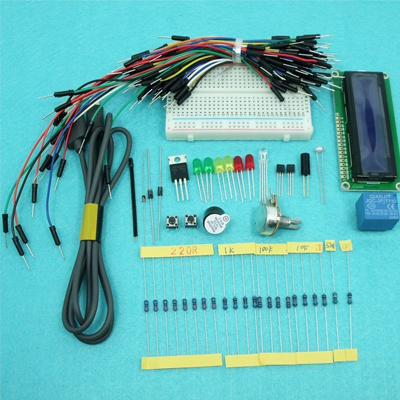

Package included:

    1x 1602 LCD Module

    1x USB Cable

    1x Breadboard

    1x Hookup Wire Set

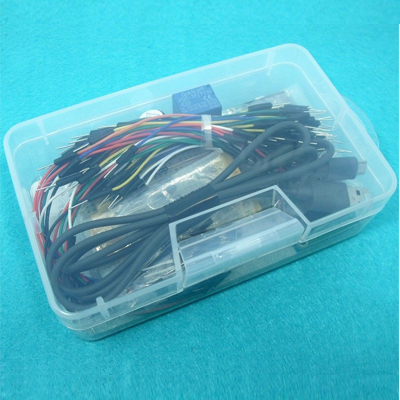

    1x Project Box

    8x Resistor - 220R

    4x Resistor - 1 kR

    4x Resistor - 10 kR

    4x Resistor - 100 kR

    1x Resistor - 1 MR

    1x Resistor - 5.1 MR

    2x NPN Transistor

    1x FET Power Transistor

    2x Diode (Rectifier)

    1x Diode (Zener)

    1x Motion Sensor (Tilt Switch)

    1x Light Sensor (Photocell)

    1x Temperature Sensor

    2x Mini Push Button

    1x Rotary Potentiometer

    1x Servo motor

    1x RGB LED

    2x Red 3mm LED

    2x Yellow 3mm LED

    2x Green 3mm LED

    1x Piezo Buzzer

    1x Relay
