AMP-2015 Class-D Stereo Aduio Power Amplifier

2x15W Audio Power Amplifier Class-D Stereo audio power amplifier



Overview

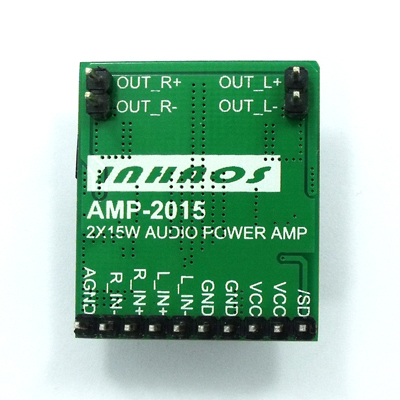

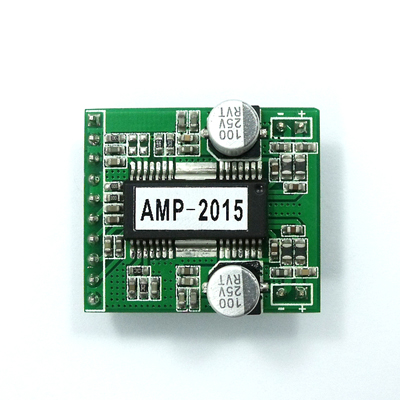

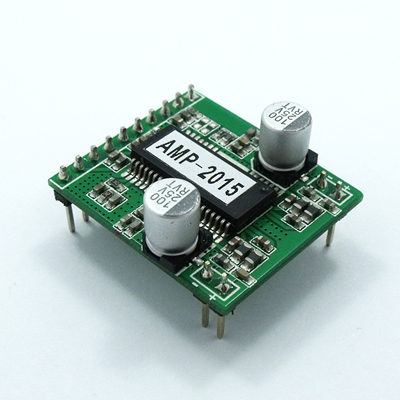

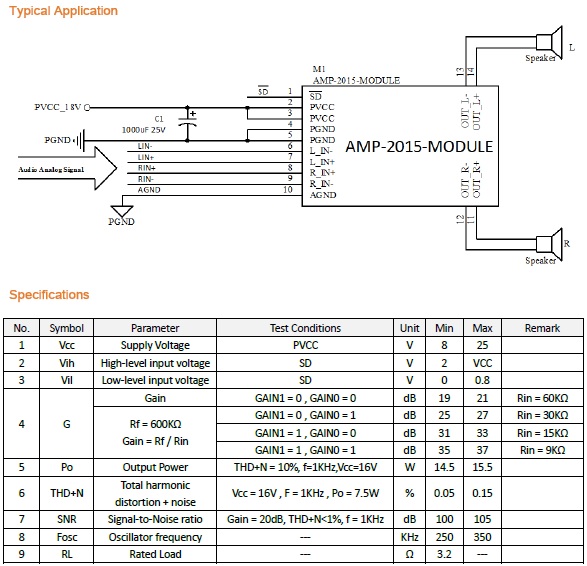

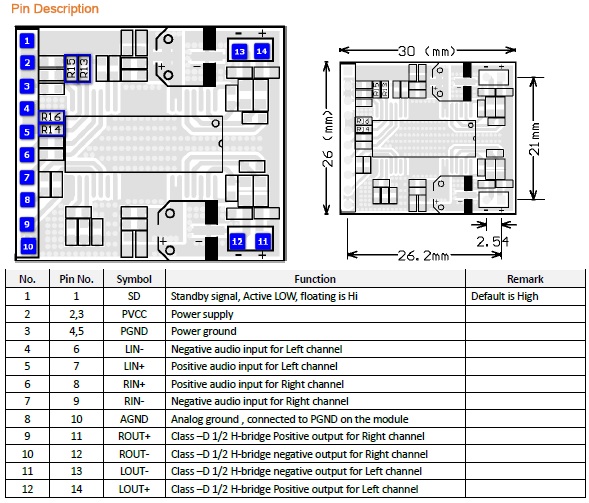

The AMP-2015 module consists of a 2x15W Class-D Stereo audio power amplifier, complete with a small number of external components mounted on a circuit board that can be used to directly drive speakers with an external analog audio source as the input.











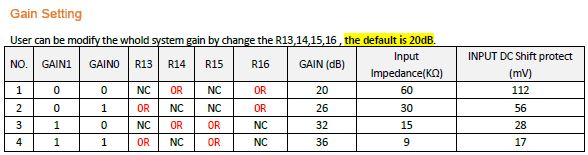

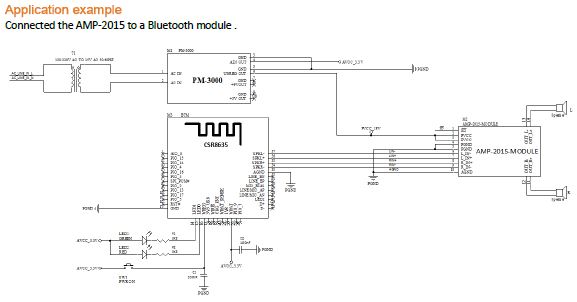

 Input DC Shift protect

When input signal contain a DC shift , and continuous over 420mS , the output protect will be active , so if the audio signal patch have big capacitor , please pull-low and hold the SD pin until the system become stable , otherwise the output stage maybe entry protect mode and no signal output.









File Name File Size Release Date Click
DOC-AMP-2015-V01-20151217 428.53 KB 12/18/2015 283
