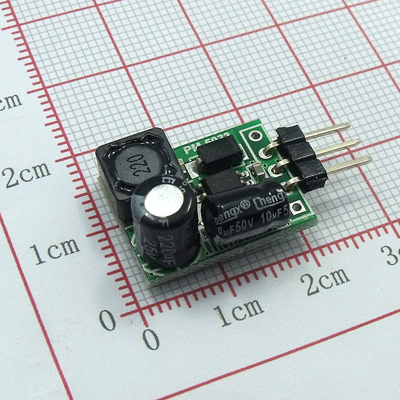

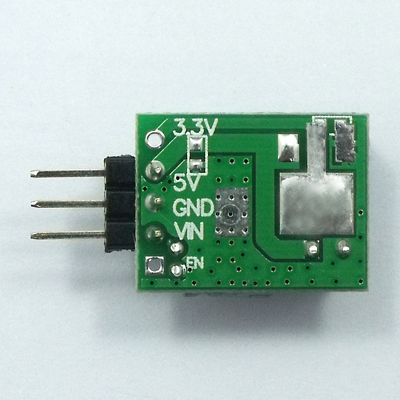

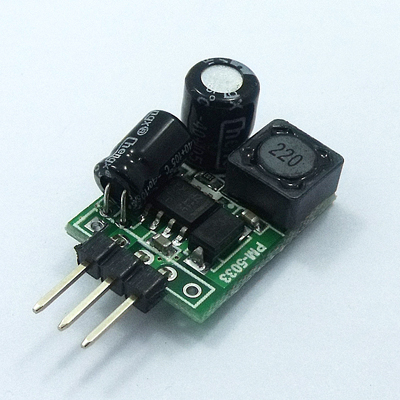

PM-5033-1 36V IN 5V 2.5A OUT DC2DC Module

Adopt TI Step-Down SWIFT Converter TPS5430
Wide 6.5V to 36V Input Voltage Range
High efficiency up to 95%
TO-220 liked size, direct replace LM7805 or similar applications



Features

    Adopt TI Step-Down SWIFT Converter TPS5430

    2CH output:

        CH1: 5V 2.5A Output

        CH2: 3.3V 500mA Output (will share load capacity with 5V channel)

    Wide 6.5V to 36V Input Voltage Range

    TO-220 liked size, direct replace LM7805 or similar applications

    Two module for user’s choice:

        PM-5033-1: Only 5V output  (this item)

        PM-5033-2: Dual channel 5V and 3.3V output  (click yo view)

    High efficiency up to 95%

    5V channel can be customer to any value within 1.22V to INPUT range


Parameters

    Input Voltage Range: 6.5 to 36V

    Output: 5V (PM-5033-1) or 5V / 3.3V (PM-5033-2)

    Max Switching Current(Adjustable channel): 3A

    Output Voltage Initial Accuracy : 2.5%

    PCBA Size: 19 * 14.5mm

    Operation Temperature: -40 to 125°C

    Storage Temperature: -65 to 165°C



Notice

    The 3.3V current consumption will share from 5V channel , that means the 5V load capacity will included 3.3V’s load, for the example , if 3.3V draw 500mA current consumption , the 5V channel have to limit output current to 2500mA - 500mA = 2A



For more detailed , please reference to the datasheet of:

    1, 5V IC:TPS5430: http://www.ti.com/product/tps5430?keyMatch=TPS5430&tisearch=Search-EN-Everything

    2, 3.3V IC:LM1117-3.3: http://www.ti.com/product/lm1117/description?keyMatch=LM1117&tisearch=Search-EN-Everything



Package List

    1 x PM-5033-1 DC to DC Module








File Name File Size Release Date Click
DOC-PM-5033-V01-20160115 246.33 KB 01/15/2016 319
DOC-PM-6009M-V01-20160111 521.9 KB 01/20/2016 521
