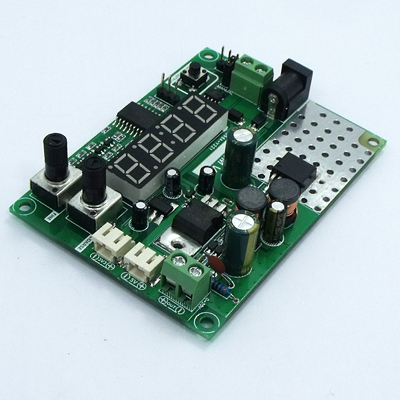

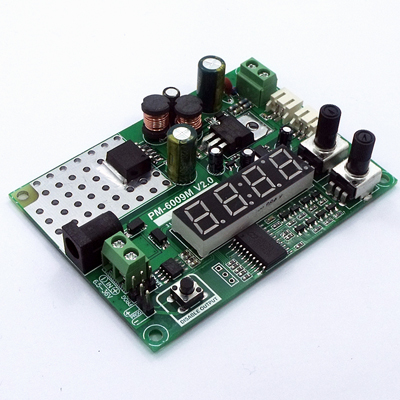

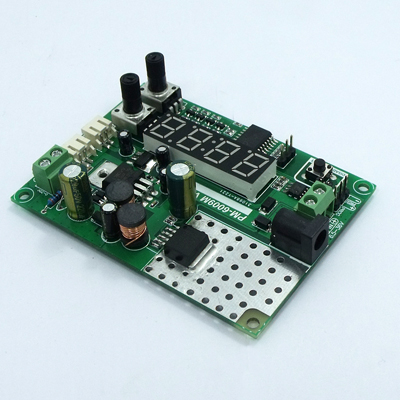

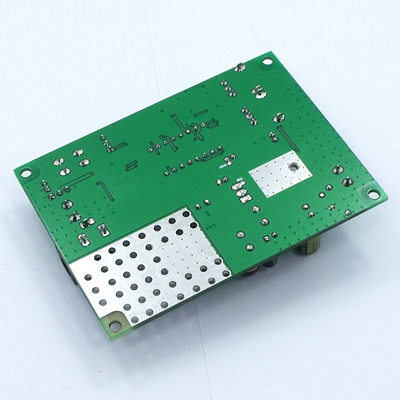

PM-6009M 6.5 to 40V INPUT Multi output DC2DC Power supply Module

Input Voltage Range: 6.5 to 40V
Output: 1CH Adjustable OUT, 1CH 5V and 1CH 3.3V Out
Max Switching Current(Adjustable channel): 5A
Programmable input voltage: 0 to 3.3V

Features

    Adopt XLSEMI 220KHz 60V 5A Switching Current DC/DC Converter

    3CH output:

        CH1: Adjustable output: 0.8 to 30V Buck/Boost (SEPIC)

        CH2: Fixed 5V output:  5V 500mA Output

        CH3: Fixed 3.3V output: 3.3V 300mA Output

        The 5V and 3.3V output load capability is depended on the input voltage , the typical input is 12V.

    Wide 6.5V to 40V Input Voltage Range

    0.8 to 30V Output Voltage Range

    Fixed 220KHz Switching Current

    Excellent Line and Load regulation

    Can be control by a voltage , become a programmable power supply


Parameters

    Input Voltage Range: 6.5 to 40V

    Output: 1CH Adjustable OUT, 1CH 5V and 1CH 3.3V Out

    Max Switching Current(Adjustable channel): 5A

    Programmable input voltage: 0 to 3.3V

    Volt Meter tolerance: 0.5% (+-1)

    Operation Temperature: -40 to 125°C

    Storage Temperature: -65 to 165°C



Notice

    The 5V and 3.3V output is used for small load capability which is less than 500mA, the big current consumption will impact the system’s accurate and maybe damaged the module.


Programmable DC2DC Buck-Boost Power Supply

    6.5 to 40V INPUT

    0.8 to 30V OUTPUT

    High precision voltmeter

    Coarse and Fine adjustable

    3CH Outout (Adjustable / 5V / 3.3V)

    SPICE circuit

    0 to 3V Programmable voltate:

        Vout = Vin * 11 (V)



The PM-6009M support two method for CH1 adjust :

    1, Adjust by manual: Please set OPT1 to MANUAL side , then turn the VR , the output voltage will be change between 0.8 to 30V , here have two VR , one is Coarse adjust and the other one is for fine adjust.

    2, Adjust by programming: Please set OTP1 to PROG side, the output of CH1 will follow the PROG voltage , the output voltage can be calculate : Vout = Vprog * 11 , and the module will be limit max output voltage within 30V, so if the Vprog higher than 2.7V , the output will be stay on 30V .






File Name File Size Release Date Click

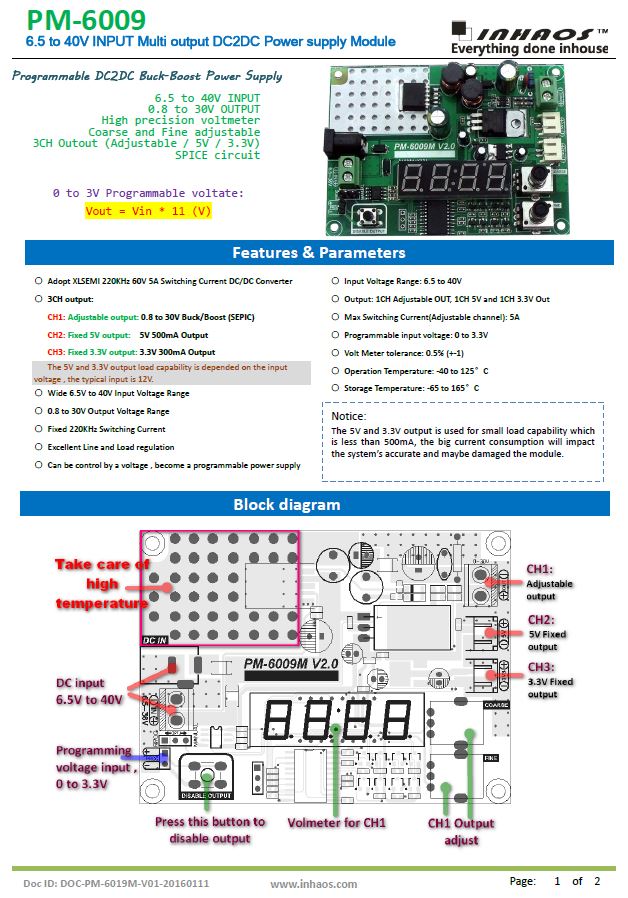

DOC-PM-6009M-V01-20160111 521.9 KB 01/20/2016 521
