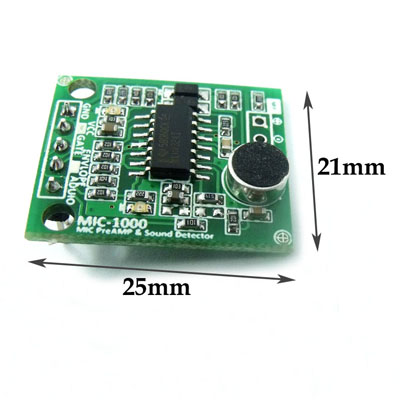

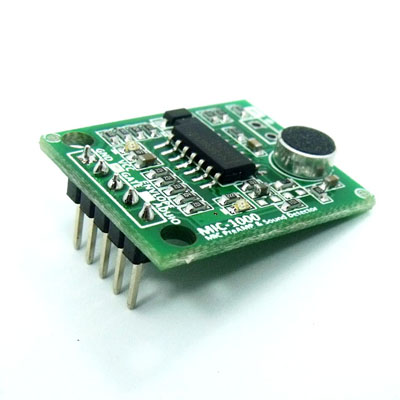

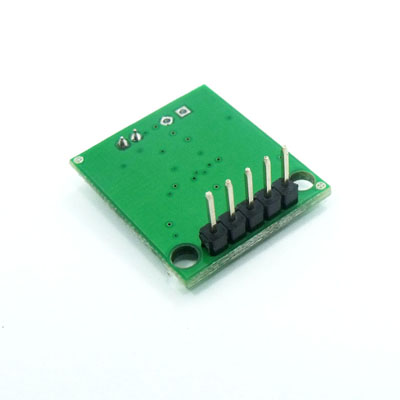

MIC-1000 Microphone Preamplifier

Features



    1, Low Cost , easy to use.
    2, Gain =100 and it’s can be adjust by install a resistor
    3, Onboard microphone or External microphone
    4, Digital output for if the sound input or not
    5, Analog output for how value of the sound input
    6, Audio signal output for audio application


Specifications



    Electrical Characteristics
        Power supply :3.3 to 5V
        Default Gain :510

    Environmental

        Operation Temperature :0℃ to 55℃
        Operating Humidity :0 to 90% non-condensing
        Storage Temperature :-20°C to 65°C



Package List



    1 x MIC-1000 Microphone Preamplifier

File Name File Size Release Date Click
MIC-1000 Sound Detector Datasheet 482.03 KB 04/02/2016 284
