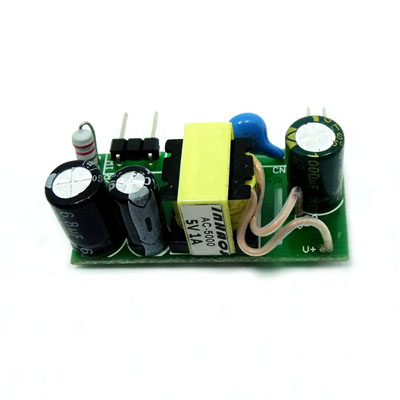

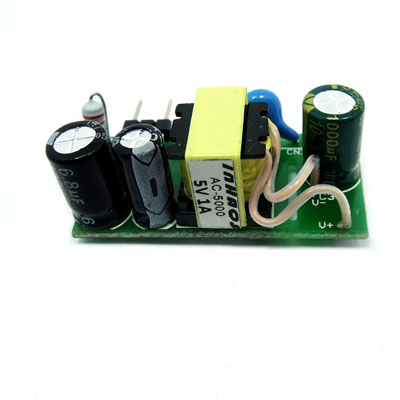

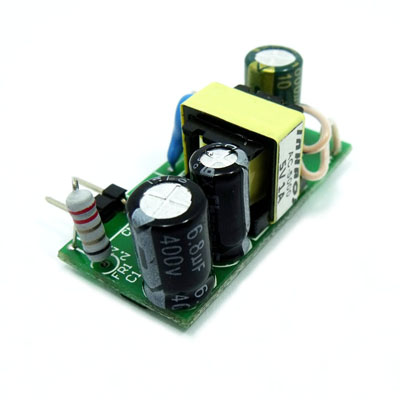

AC-5000 AC-DC AC 85-265V DC Switching Power Supply Module



Features


    85 to 265V AC 50/60Hz input range
    Temperature protection
    Over-current protection and short circuit protection
    5V 1A / 9V 600mA / 12V 500mA selectable
    Size : 40x17x20 mm
    Compact design, suitable for a variety of purposes.



Parameters


    Input Voltage: AC 85V to 265V 50/60Hz
    Output Accuracy: +-5%
        AC-5000-5V: 4.75V to 5.25V
        AC-5000-9V: 8.55V to 9.45V
        AC-5000-12V: 11.4V to 12.6V
    Maximum continuous output current:
        AC-5000-5V: 1A
        AC-5000-9V: 600mA
        AC-5000-12V: 500mA
    Storage temperature: -55℃--+150℃
    Working temperature: 0℃--+125℃



Notes:


    This product is exposed bare circuit board, high voltage on the board, please pay attention to safety.
     Users must have professional electrician skills to ensure use of the process does not result in an electric shock.
    AC input circuit must ensure enough safety distance, and there are clear warning labels.



Package List



    2 pcs AC-5000 5V or 9V or 12V Switching Power Supply Module
    or
    10pcs AC-5000 5V or 9V or 12V Switching Power Supply Module

File Name File Size Release Date Click
AM01 AC-DC module 353.45 KB 09/27/2018 1,513
AP022 60W AC-DC converter-F 319.01 KB 12/04/2018 1,435
AP006 36W AC-DC converter-F 313.95 KB 12/04/2018 1,403
AP008 5W AC-DC converter-F 338.28 KB 12/05/2018 1,462
