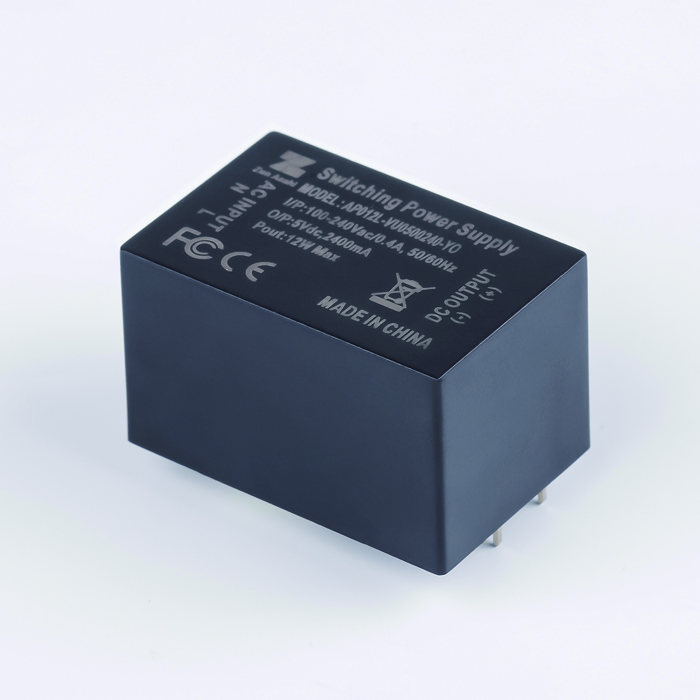

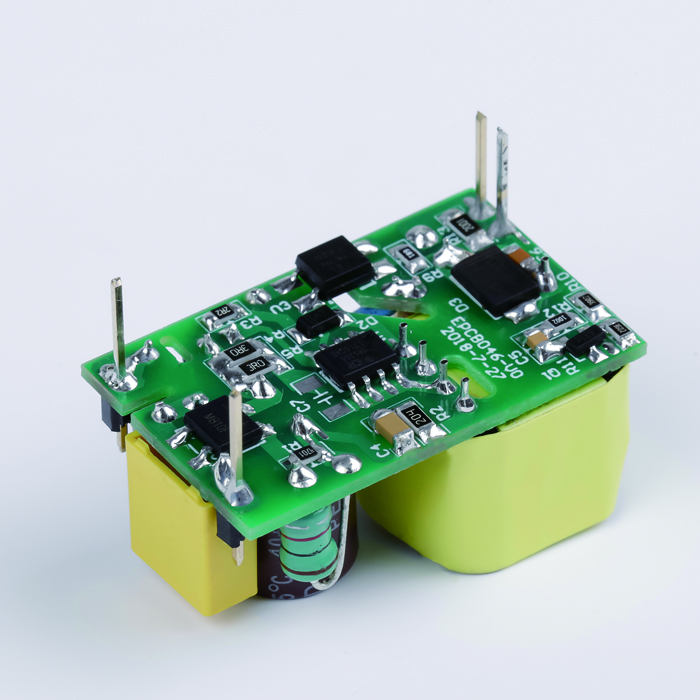

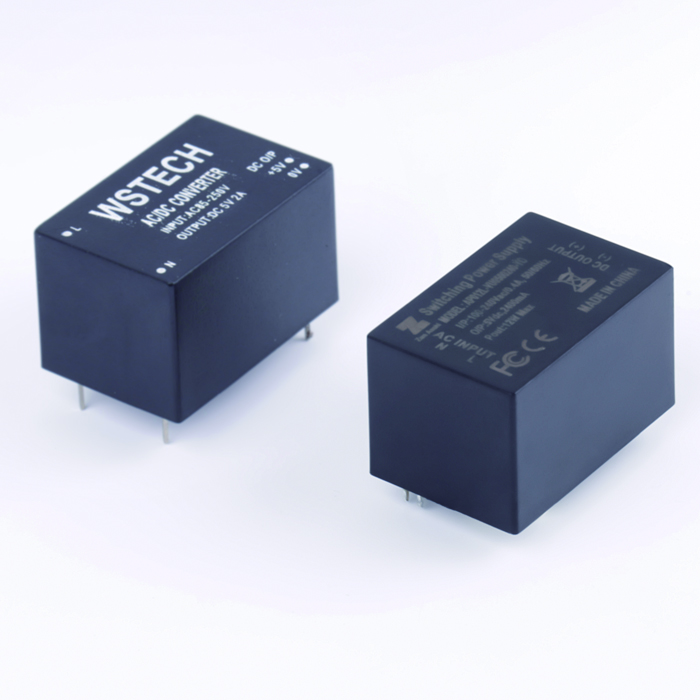

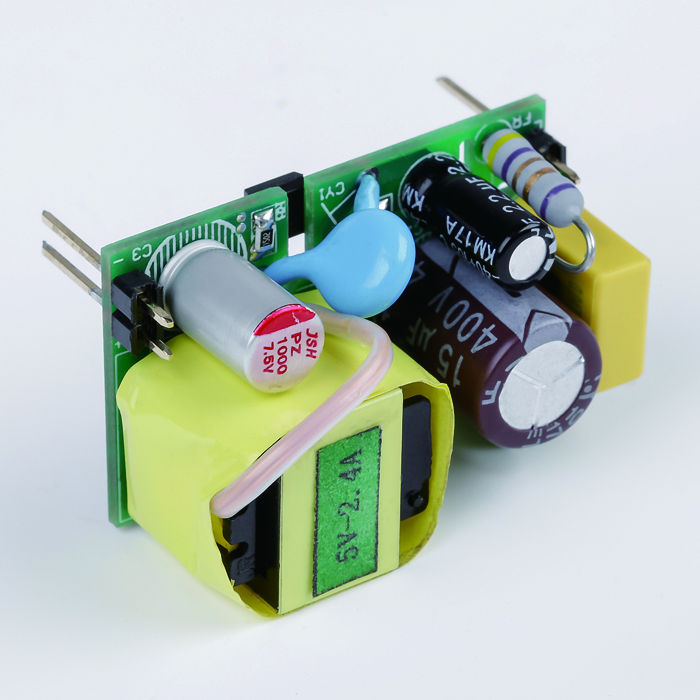

AM01 AC-DC 85-265V To 5V 12V 24V Converter Onboard switching Power Supply Module









Selection Guide

Certification

Part No.

Output Power

Output Voltage

Output Current

Efficiency

FCC / CE

ZA012L-VU050240-A01

12W

5.0-5.2V

0-2.4A

82%

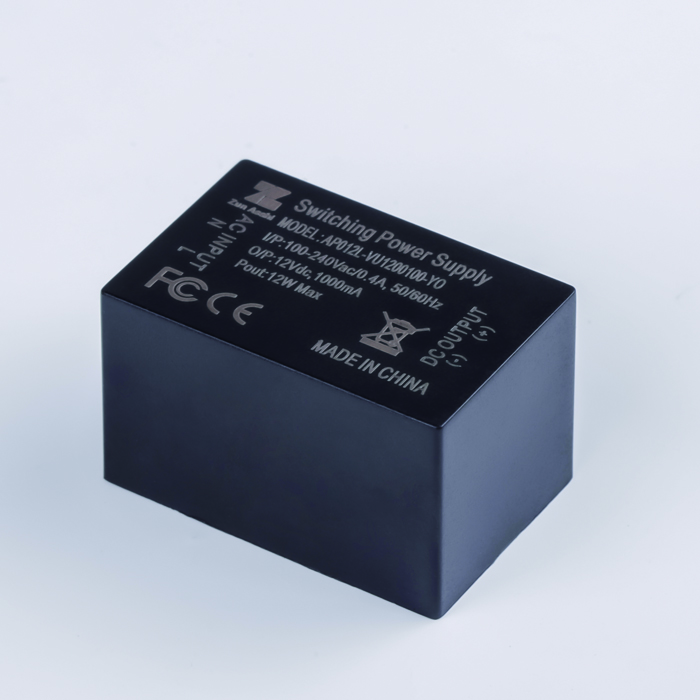

ZA012L-VU120100-A01

12W

12-12.2V

0-1A

83%

ZA012L-VU240050-A01

12W

24-24.2V

0-0.5A

85%











Input Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Input Voltage Range

AC input

100

-

240

VAC

Input Frequency



47

-

63

Hz

Input Current

115VAC

-

0.26

0.30

A

230VAC

-

0.16

0.19

A

Inrush Current

115VAC

-

10

-

A

230VAC

-

32

-

A

Hot Plug

Not available

Output Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Output Voltage Range

ZA012L-VU050240-A01

5

5.1

5.2

VDC

ZA012L-VU120100-A01

12

12.1

12.2

VDC

ZA012L-VU240050-A01

24

24.1

24.2

VDC

Ripple & Noise

ZA012L-VU050240-A01

80

mVp-p

ZA012L-VU120100-A01

80

mVp-p

ZA012L-VU240050-A01

100

mVp-p

Over current /  Short Circuit Protection

≥ 110%-150% Io self-recovery






General Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Operating Temperature



-20



60

°C

Storage Temperature



-20



80

°C

Storage Humidity



10%



95%

RH

Welding Temperature

Wave-soldering

260 ± 5℃; time: 5 - 10s

Manual-soldering

360 ± 10℃; time: 3 - 5s

Switching Frequency



500

KHz

Safety Standard

EN60065:2014

EMC Standards

Meets FCC Part 15B:2016; EN55035:2017; EN61000-3-2:2014;EN61000-3-3:2013; EN55032:2015

Safety Class

CLASS I I





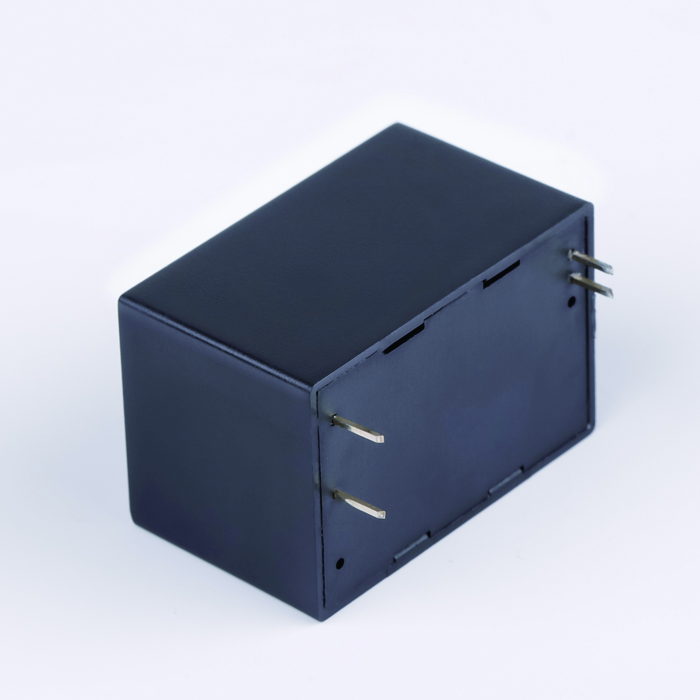

Physical Specification

Case Material

Black plastic UL94 V-0

Dimension

38*25*23 mm

Weight

38 grams

Cooling method

Free air

















Dimension unit mm











Package List:



                                   1 x AM01
