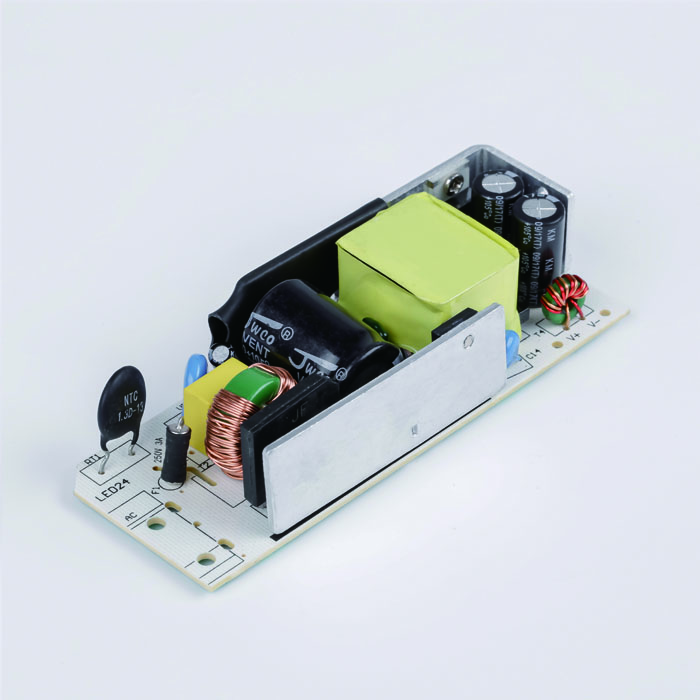

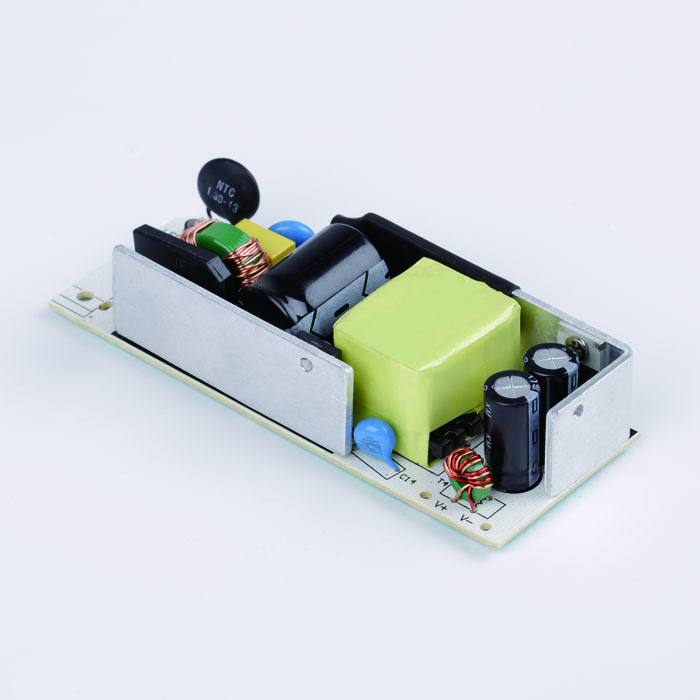

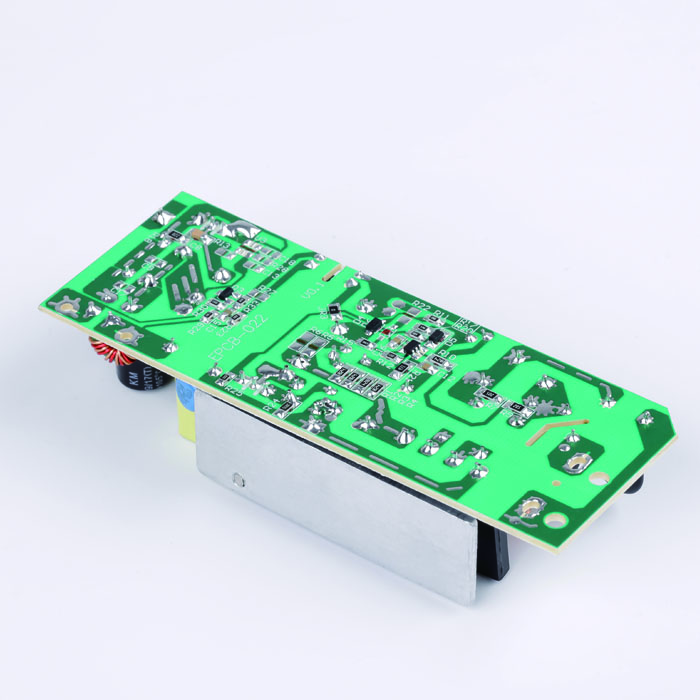

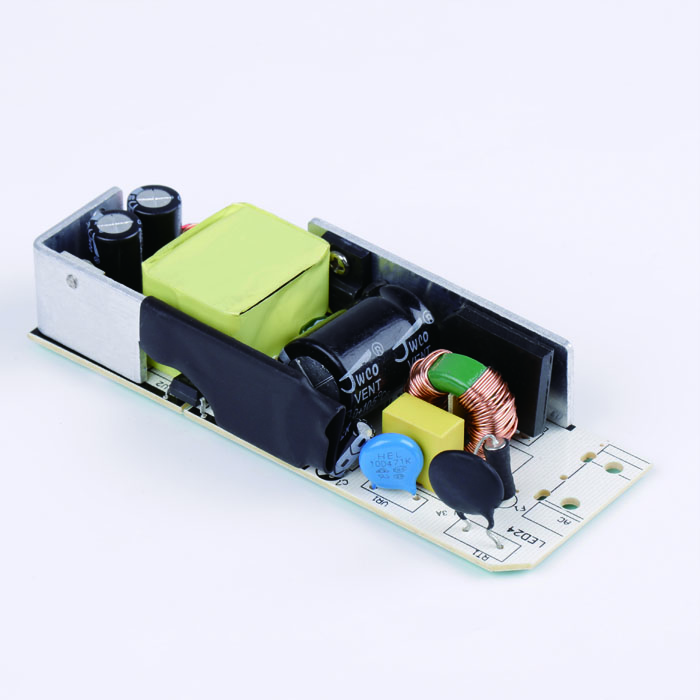

AP022 AC-DC 100-240V to 12V 24V 5A 60W 60Hz Power Supply Switching Board Module





Selection Guide

Certification

Part No.

Output Power

Output Voltage

Output Current

Efficiency

FCC / CE

ZA060L-VU1200500-YO

60W

12-12.2V

0-5.0A

88%

ZA060L-VU2400250-YO

60W

24-24.2V

0-2.5A

89%



Input Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Input Voltage Range

AC input

100

-

240

VAC

Input Frequency



47

-

63

Hz

Input Current

115VAC

-

0.6

1.2

A

230VAC

-

0.35

0.75

A

Inrush Current

115VAC

-

20

-

A

230VAC

-

40

-

A

Hot Plug

Not available





Output Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Output Voltage Range

ZA060L-VU1200500-YO

12

12.1

12.2

VDC

ZA060L-VU2400250-YO

24

24.1

24.2

VDC

Ripple & Noise

ZA060L-VU1200500-YO

120

mVp-p

ZA060L-VU2400250-YO

120

mVp-p

Over current Protection

≥ 110%-150% Io self-recovery

Short Circuit Protection

self-recovery







General Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Operating Temperature



-20



70

°C

Storage Tmeperature



-20



80

°C

Storage Humidity



10



95

°C

Welding Temperature

Wave-soldering

260 ± 5℃; time: 5 - 10s

Manual-soldering

360 ± 10℃; time: 3 - 5s

Switching Frequencn



500

KHz

Safety Standard

EN60065:2014

Safety-regulated Certificaton

Meets FCC Part 15B:2016; EN55035:2017; EN61000-3-2:2014;EN61000-3-3:2013; EN55032:2015

Safety Class

CLASS I I







Physical Specification

Dimension

112*41*25 mm

Weight

62 grams

Cooling method

Free air







Typical application circuit:





           Package list:



                      1 x AP022 power supply module (12V  or  24V)
