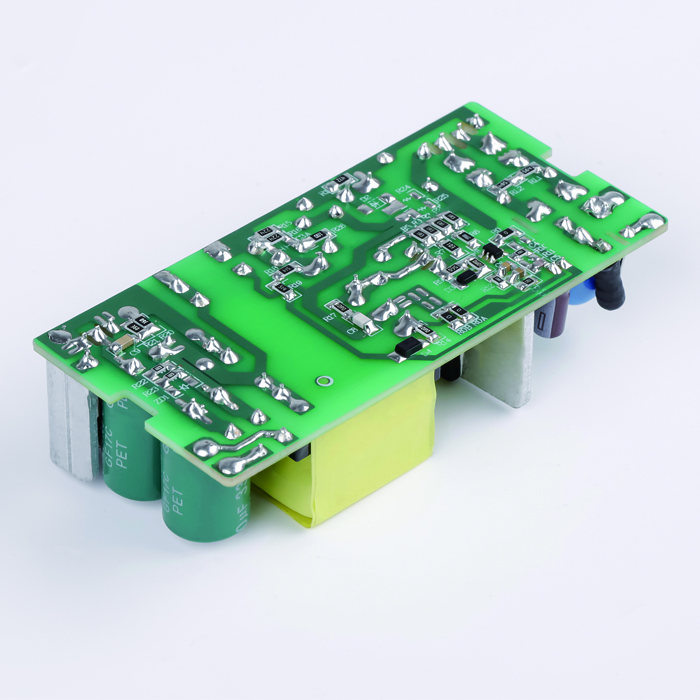

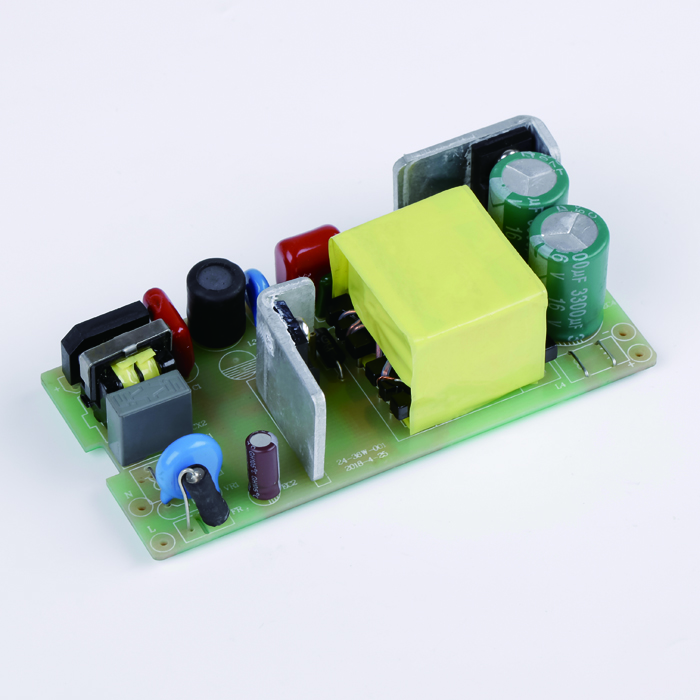

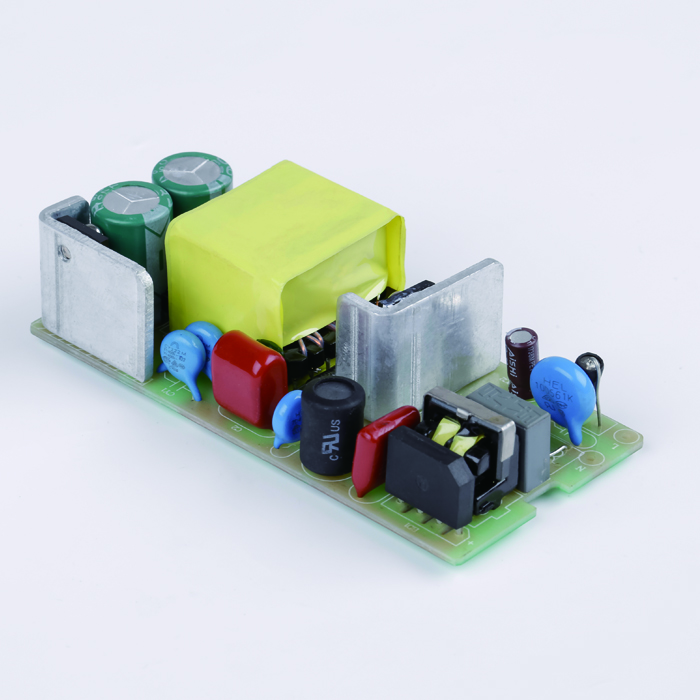

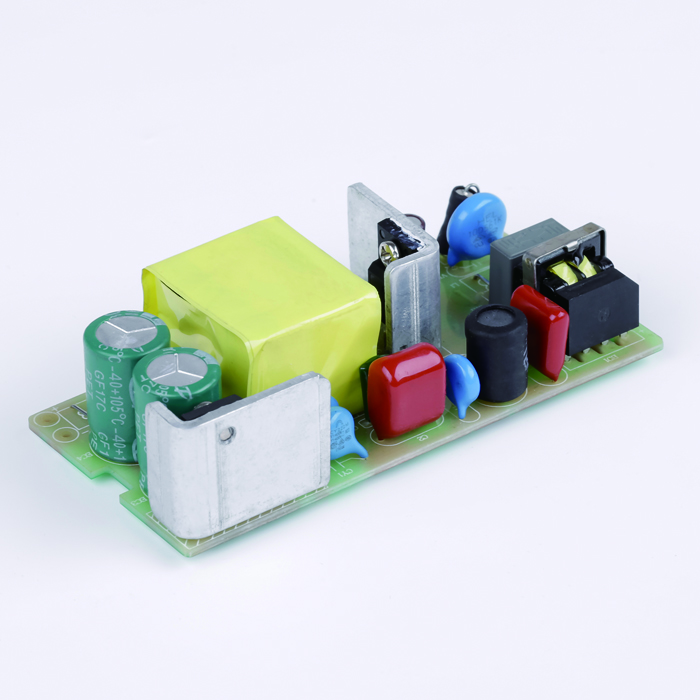

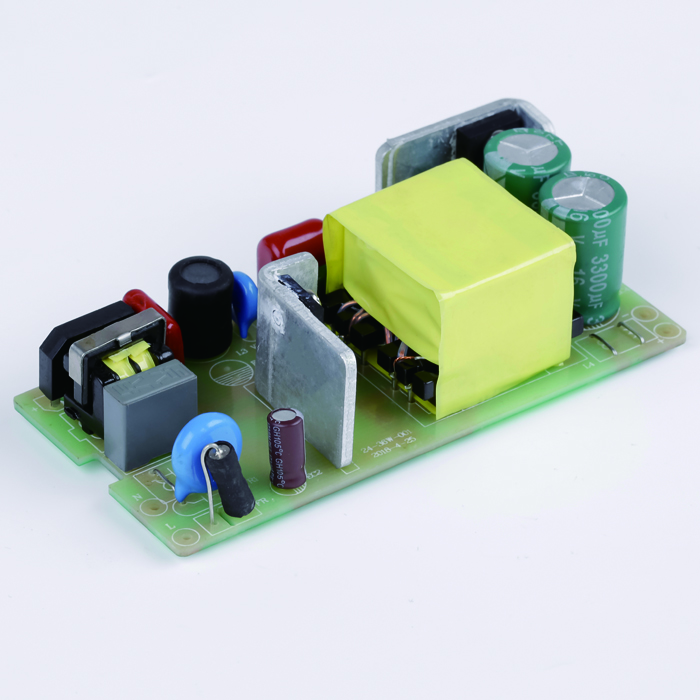

AP006 12V 3A 36W AC/DC Power Supply Switching Board module for LED Light Strips





Selection Guide

Certification

Part No.

Output Power

Output Voltage

Output Current

Efficiency

FCC / CE

ZA036H-VE1200300-NO

36W

12-12.2V

0-3.0A

84%




Input Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Input Voltage Range

AC input

100

-

240

VAC

Input Frequency



47

-

63

Hz

Input Current

115VAC

-

0.6

1.2

A

230VAC

-

0.35

0.75

A

Inrush Current

115VAC

-

20

-

A

230VAC

-

10

-

A

Hot Plug

Not available





Output Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Output Voltage Range

ZA036H-VE1200300-NO

12

12.1

12.2

VDC

Ripple & Noise

ZA036H-VE1200300-NO

120

mVp-p

Over current Protection

≥ 110%-150% Io self-recovery

Short Circuit Protection

self-recovery



General Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Operating Temperature



-20



70

°C

Storage Tmeperature



-20



80

°C

Storage Humidity



10



95

°C

Welding Temperature

Wave-soldering

260 ± 5; time: 5 - 10s

Manual-soldering

360 ± 10; time: 3 - 5s

Switching Frequencn



500

KHz

Safety Standard

EN61347-1,EN61347-2-13

Safety-regulated Certificaton

EN55015,EN61000-4-2,3,4,5,6,8,11 ,EN61547

Safety Class

CLASS I I













Physical Specification

Dimension

92*44*24 mm

Weight

57 grams

Cooling method

Free air







Typical application circuit:





File Name File Size Release Date Click
AP006 36W AC-DC converter-F 313.95 KB 12/04/2018 99
AP008 5W AC-DC converter-F 338.28 KB 12/05/2018 107
