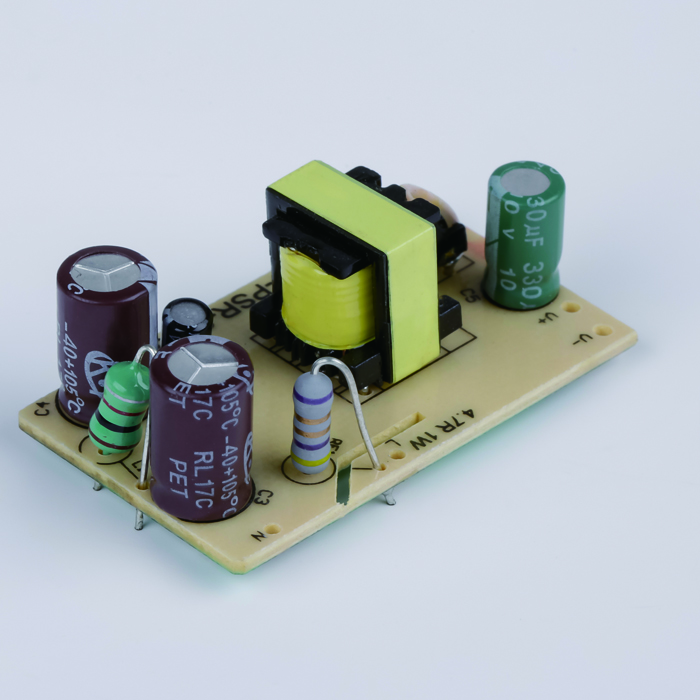

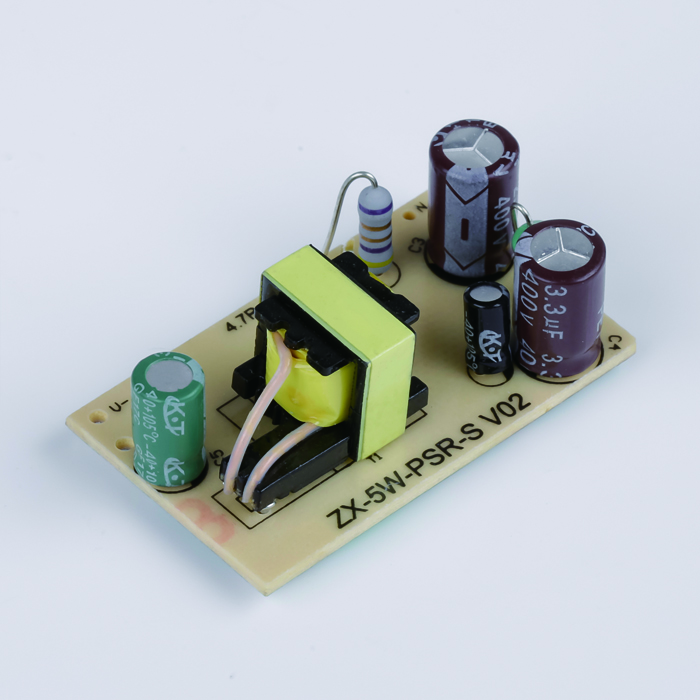

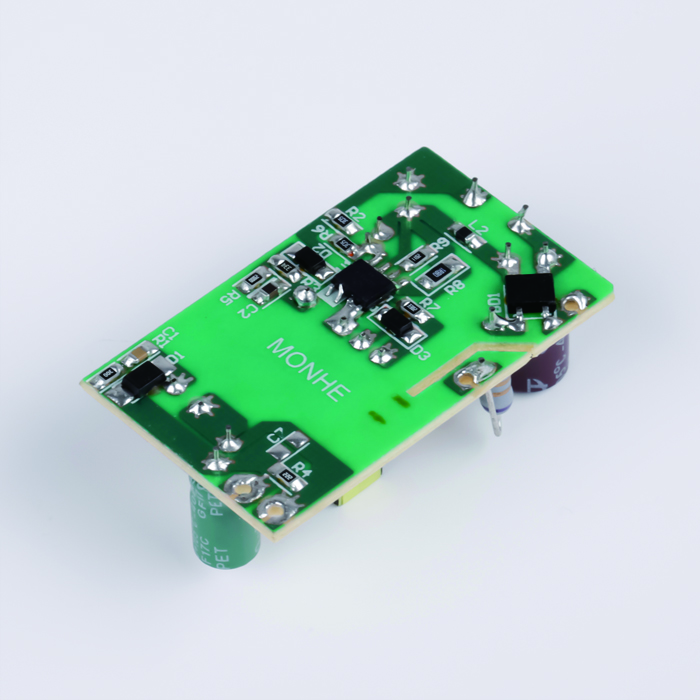

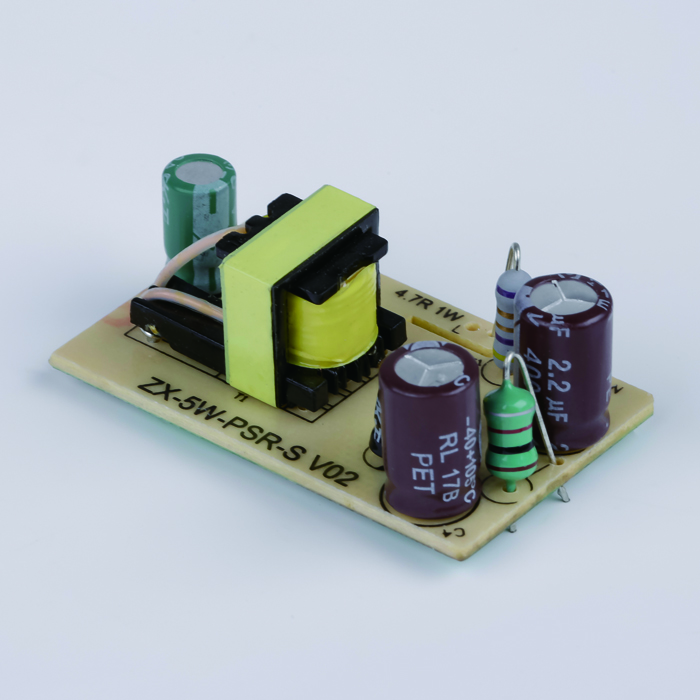

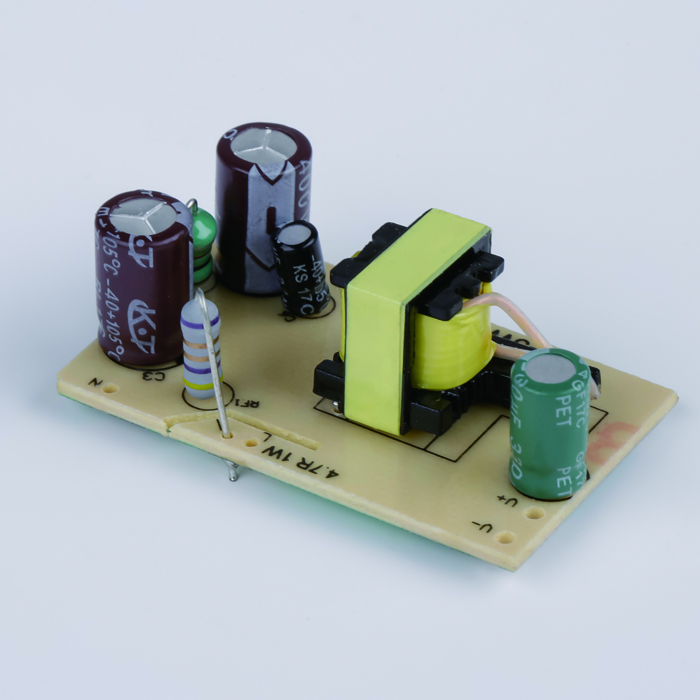

AP008 5V 6V 0.4-1A 5W AC/DC Power Supply Switching Board module





Selection Guide

Certification

Part No.

Output Power

Output Voltage

Output Current

Efficiency

FCC / CE

ZA005L-VU0500100-NO

5W

5 -5.2V

0-1.0A

74%

ZA005L-VU0600080-NO

4.8

6.-6.2V

0-0.8A

75%

ZA005L-VU0900060-NO

5.4W

9-9.2V

0-0.6A

76%

ZA005L-VU1200040-NO

4.8W

12-12.2V

0-0.4A

76%



Input Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Input Voltage Range

AC input

100

-

240

VAC

Input Frequency



47

-

63

Hz

Input Current

115VAC

-

0.3

0.5

A

230VAC

-

0.2

0.4

A

Inrush Current

115VAC

-

20

-

A

230VAC

-

10

-

A

Hot Plug

Not available



Output Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Output Voltage Range

ZA005L-VU0500100-NO

5

5.1

5.2

VDC

ZA005L-VU0600080-NO

6

6.1

6.2

 VDC

ZA005L-VU0900060-NO

9

9.1

9.2

 VDC

ZA005L-VU1200040-NO

12

12.1

12.2

VDC

Ripple & Noise

ZA005L-VU0500100-NO

100

mVp-p

ZA005L-VU0600080-NO

100

mVp-p

ZA005L-VU0900060-NO

120

mVp-p

ZA005L-VU1200040-NO

150

mVp-p

Over current Protection

≥ 110%-150% Io self-recovery

Short Circuit Protection

self-recovery






General Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Operating Temperature



-20



70

°C

Storage Tmeperature



-20



80

°C

Storage Humidity



10



95

°C

Welding Temperature

Wave-soldering

260 ± 5; time: 5 - 10s

Manual-soldering

360 ± 10; time: 3 - 5s

Switching Frequencn



500

KHz

Safety Standard

EN 60065:2014

Safety-regulated Certificaton

FCC Part 15B:2016 ;  EN550352017 ; EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55032:2015

Safety Class

CLASS I I





Physical Specification

Dimension

45 *   27  *   18  mm

Weight

50 grams

Cooling method

Free air








File Name File Size Release Date Click
AP008 5W AC-DC converter-F 338.28 KB 12/05/2018 9
