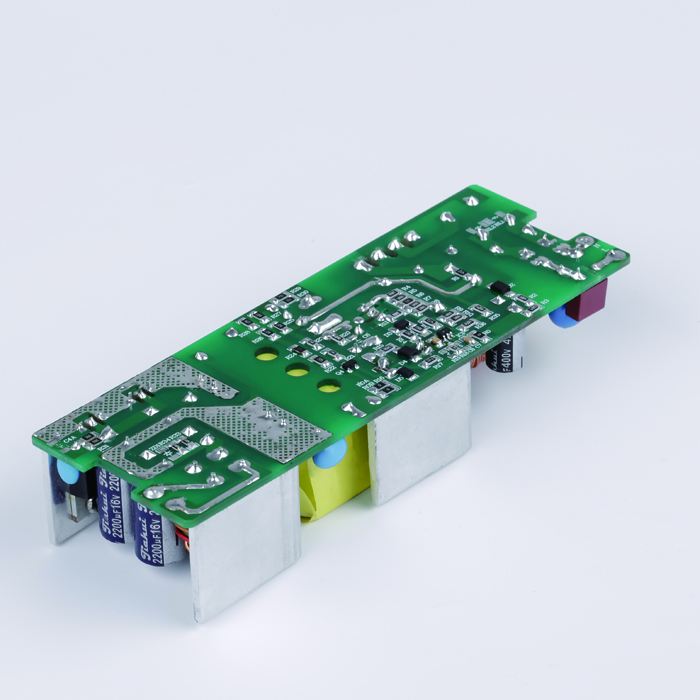

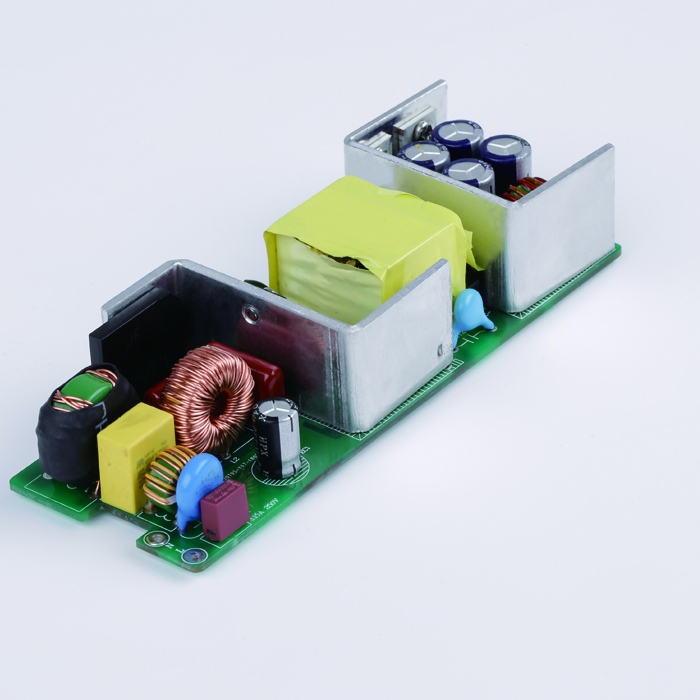

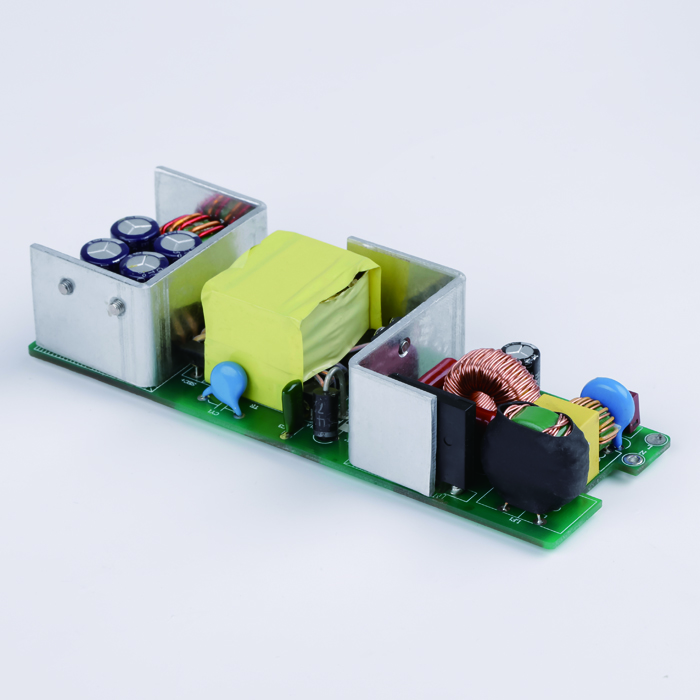

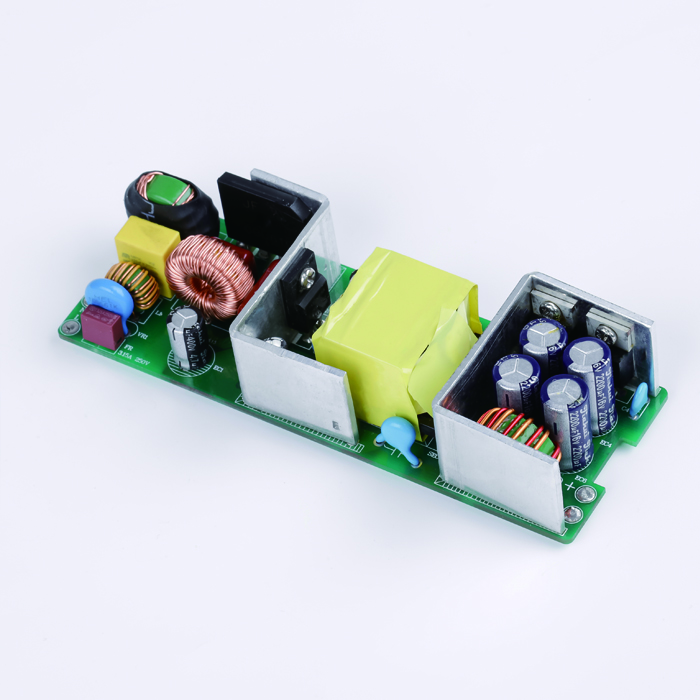

AP003 12V 5A 60W AC/DC Power Supply Switching Board module for Floor lamp drive



Selection Guide

Certification

Part No.

Output Power

Output Voltage

Output Current

Efficiency

FCC / CE

ZA060H-VE1200500-NO

60W

12.3-12.5V

0-5.0A

86%





Input Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Input Voltage Range

AC input

100

-

240

VAC

Input Frequency



47

-

63

Hz

Input Current

115VAC

-

1.2

2

A

230VAC

-

0.6

1

A

Inrush Current

115VAC

-

40

-

A

230VAC

-

20

-

A

Hot Plug

Not available





Output Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Output Voltage Range

ZA060L-VU1200500-YO

12.3

12.4

12.5

VDC

Ripple & Noise

ZA060L-VU1200500-YO

160

mVp-p

Over current Protection

≥ 110%-150% Io self-recovery

Short Circuit Protection

self-recovery





General Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Operating Temperature



-20



70

°C

Storage Tmeperature



-20



80

°C

Storage Humidity



10



95

°C

Welding Temperature

Wave-soldering

260 ± 5; time: 5 - 10s

Manual-soldering

360 ± 10; time: 3 - 5s

Switching Frequencn



500

KHz

Safety Standard

EN61347-1,EN61347-2-13

Safety-regulated Certificaton

EN55015,EN61000-4-2,3,4,5,6,8,11 ,EN61547

Safety Class

CLASS I I







Physical Specification

Dimension

128*44.5*26.5 mm

Weight

Cooling method

Free air







Typical application circuit:
