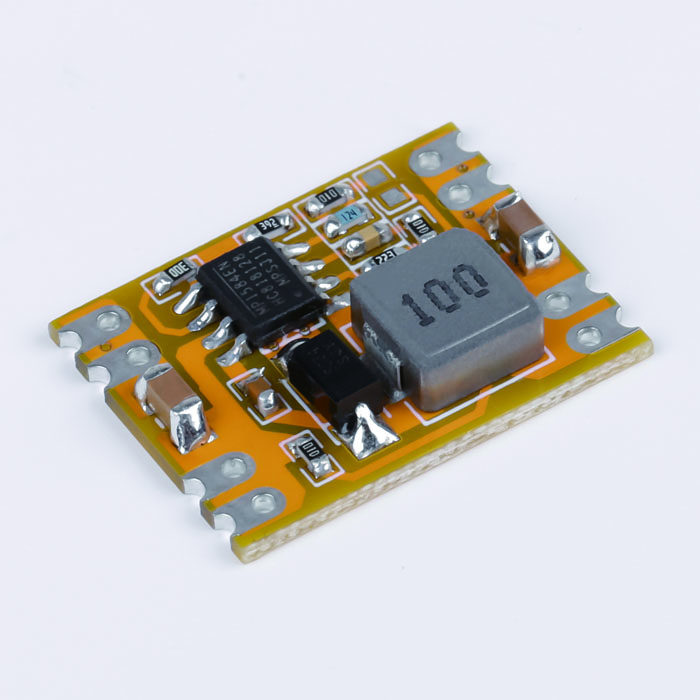

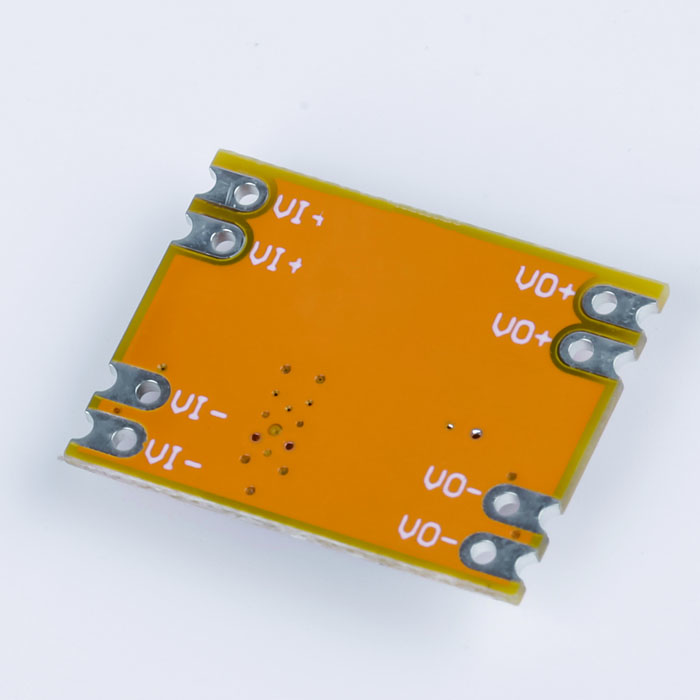

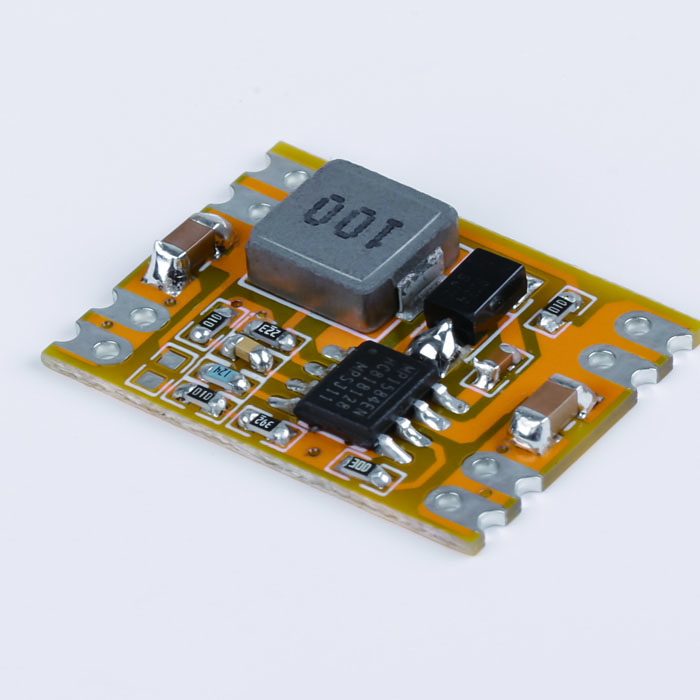

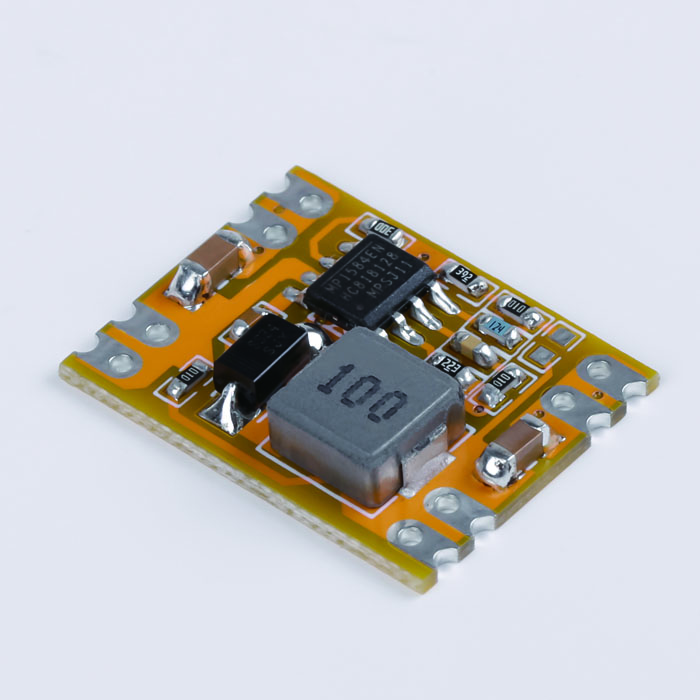

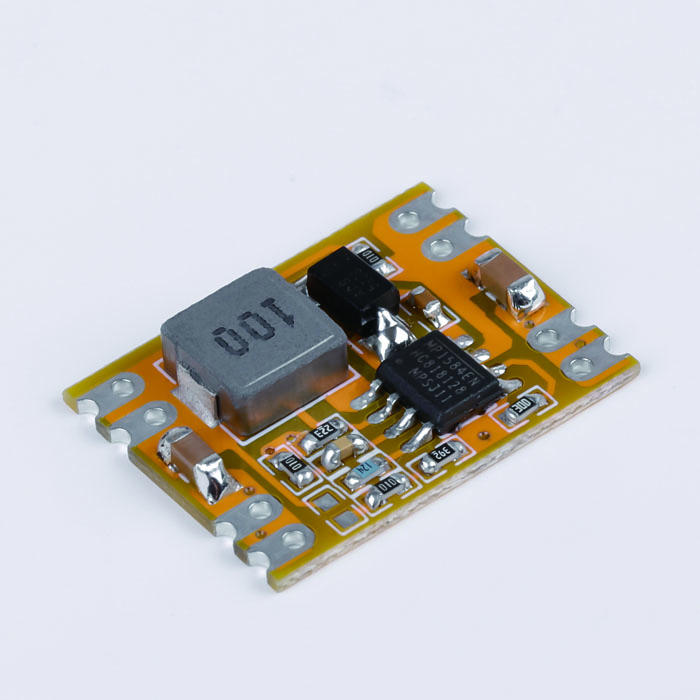

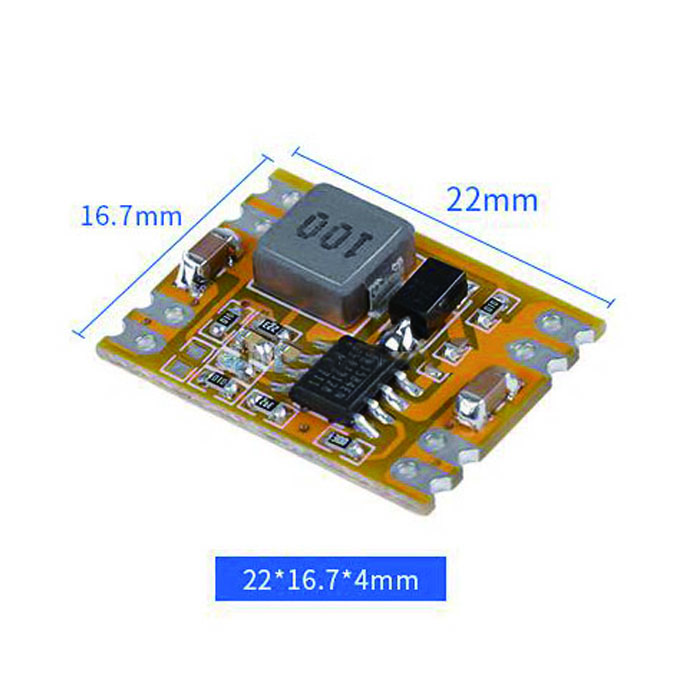

DM01 DC-DC Converter Step Down Module Power Supply 5-28V to 3.3V 5V 9V 12V 3A





Selection Guide

Certification

Part No.

Input Voltage

Output Voltage

Output Current

Efficiency @1A

FCC

DM01-033030B

5.0-28V

3.3V

0-3A

88%

DM01-050030B

8.0-28

5.0V

0-3A

88%

DM01-090030B

12-28V

9.0V

0-3A

90%

DM01-120030B

15-28V

12.0V

0-3A

92%





Output Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Output Voltage Range

DM01-033030B

3.2

3.3

3.4

VDC

DM01-050030B

4.9

5.0

5.1

VDC

DM01-090030B

11.8

12

12.2

VDC

DM01-120030B

23.7

24

24.3

VDC

Ripple & Noise



-

60

120

mVp-p

Output Over-voltage Protection

 Input Voltage range

110

-

160

% Vo

Output Over-current Protection

 Input Voltage range

110

160

230

% Io

Short Circuit Protection

 Input Voltage range

Hiccup, Continuous, self-recovery





General Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Insolation Voltage



1500





            Vdc

Operating Temperature



-20



85

°C

Storage Tmeperature



-20



105

°C

Storage Humidity



5



95

°C

Welding Temperature

Wave-soldering

260 ± 5; time: 5 - 10s

Manual-soldering

360 ± 10; time: 3 - 5s

Switching Frequencn



500

KHz



File Name File Size Release Date Click
DM01 DC-DC converter-F 297.18 KB 12/13/2018 103
DM05 DC-DC converter-F 303.77 KB 12/14/2018 115
