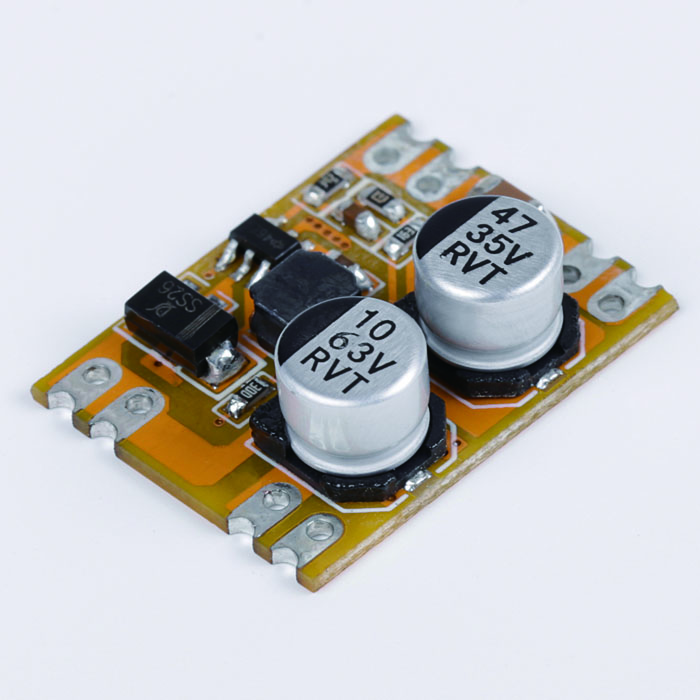

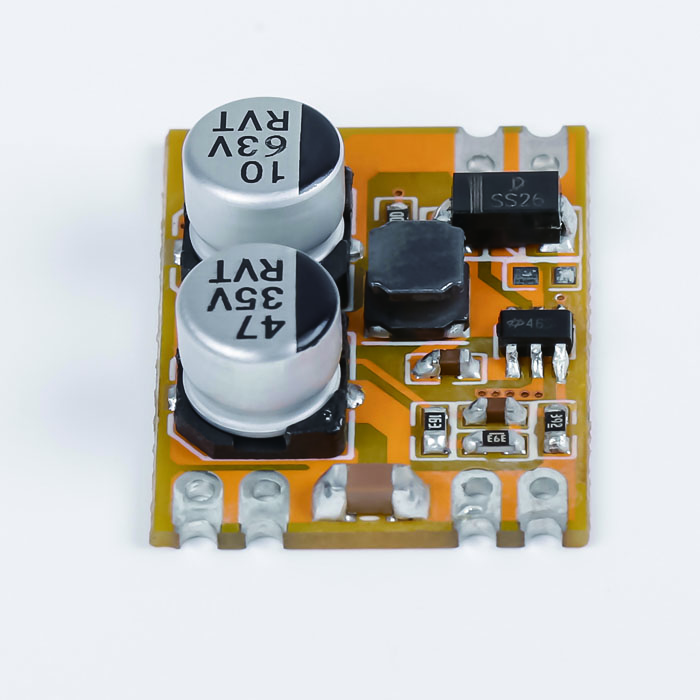

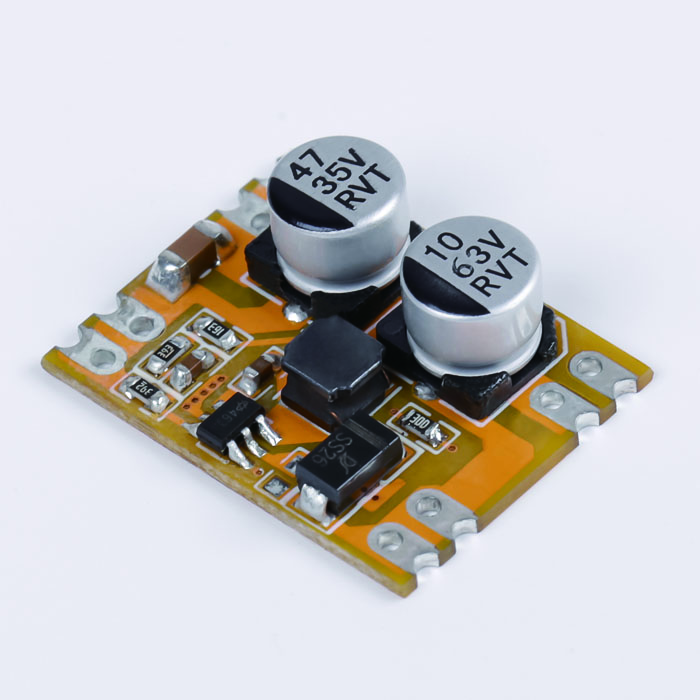

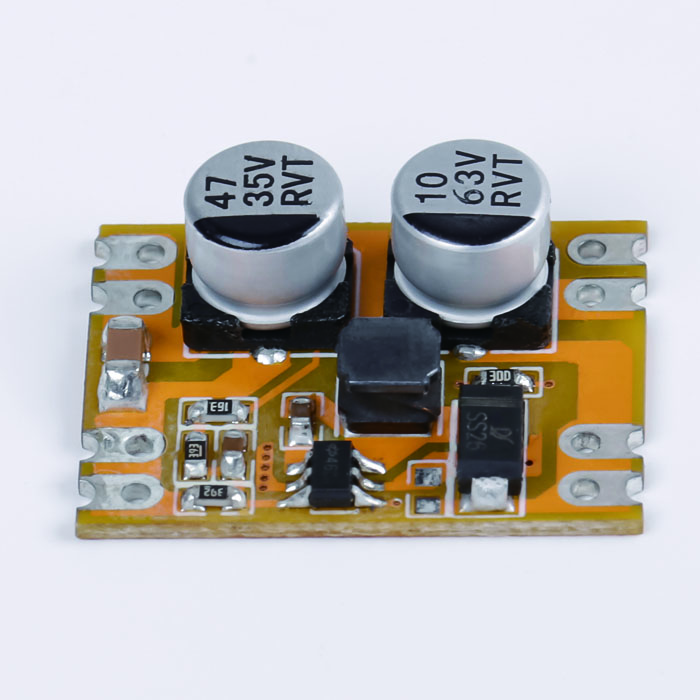

DM05 DC-DC 5-55V to 3.3V 5V 9V 12V 0.6A Power Supply Converter Step Down Module





Selection Guide

Certification

Part No.

Input Voltage

Output Voltage

Output Current

MAX. Efficiency

FCC

DM05-033006B

4.5-55V

3.3

0-0.6A

92%

DM05-050006B

6.5-55V

5.0V

0-0.6A

92%

DM05-090006B

10-55V

9.0V

0-0.6A

92%

DM05-120006B

13-55V

12.0V

0-0.6A

92%





Output Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Output Voltage Range

DM01-033030B

3.2

3.3

3.4

VDC

DM01-050030B

4.9

5.0

5.1

VDC

DM01-090030B

8.8

9.0

9.2

VDC

DM01-120030B

11.8

12.0

12.2

VDC

Ripple & Noise



-

60

120

mVp-p

Output Over-voltage Protection

 Input Voltage range

110

-

160

% Vo

Output Over-current Protection

 Input Voltage range

110

160

230

% Io

Short Circuit Protection

 Input Voltage range

Hiccup, Continuous, self-recovery



General Specification

Item

Operating Condition

Min.

Typ.

Max.

Unit

Insolation Voltage



1500





            Vdc

Operating Temperature



-20



85

°C

Storage Tmeperature



-20



105

°C

Storage Humidity



5



95

°C

Welding Temperature

Wave-soldering

260 ± 5; time: 5 - 10s

Manual-soldering

360 ± 10; time: 3 - 5s

Switching Frequencn



500

KHz

File Name File Size Release Date Click
DM05 DC-DC converter-F 303.77 KB 12/14/2018 67
