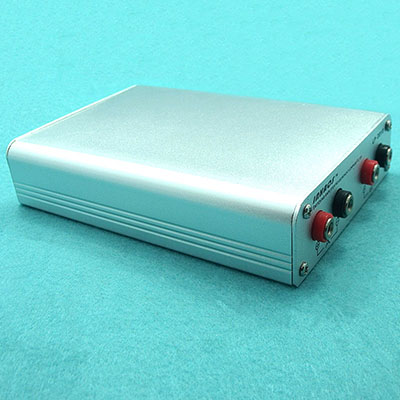

Switching Amplifier Measurement Lowpass Filter LP-2010

True differential input,single-endend output,4-pole,30KHz low-pass filter Low cost,High performance Flat response at 20 to 20KHz +-10Vp input limit , easy to scale to +-50Vp or higher reference to AES17-1998 specifications

Introduction

This is a great D class amplifier measurement of low-pass filter.The fine workingmanship,superiro performance,easy connection make this product easy to use and very worth owning with a high cost performance .


Easy to use

simple connection,it only takes 3 mins from unpacking to using

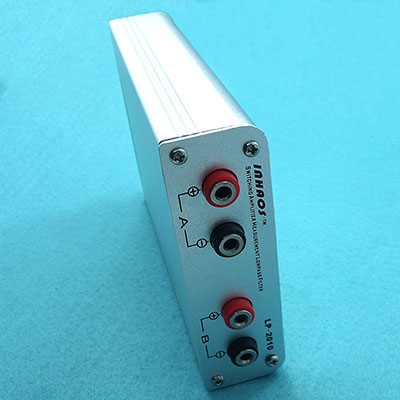

True differential input,suitbale for the bridge output structure

Single-ended output,the output buffer stage can load multiple connections

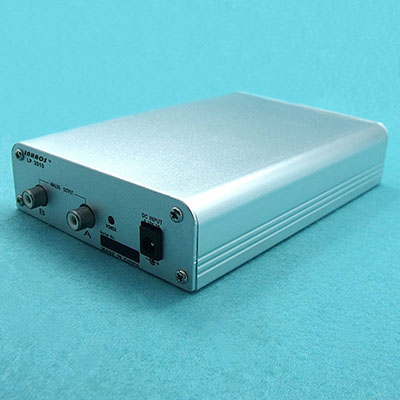

Simple power input,the built-in power converter module provides power supply for internal circuity



High Cost Performance

Superior Performance,But Low Price

10% for less than the price of branded products,with most of its performance

Superior frequency response and distortion

Very easy to extend range,brings endless appreciation potential

Abundant high-quality accessories,without additional cost



Where needs it ?

Low-power switching amplifier measurement

Hands-free bluetooth audio parameters debug and test

Mobile audio products parameters debug and test

Multimedia audio products audio parameters debug and test

Low pass filter for digital audio decoder


Who needs it ?

Amplifier products manufacturing plant

Specialized for Maintenance Testing

R & D engineers, to debug switching amplifier

Personal, for DIY digital audio products


Technical Parameters Specifications

Frequency Response                            ±0.1dB , 10Hz to 20KHz

Insertion Loss                                        0.05dB , typically

High-frequency(HF) Inhibit                     > 60dB , 250KHz to 20MHz , typically

Maximum Input (without extension)       ±10V peak

Channel Isolation                                   > 90dB @ 20KHz

Distortion                                               < 0.005% harmonic (1V 1KHz)



Dimension

  Temperature

      Suitable Temperature                      +5°C to +40°C

      Storage Temperature                       -40°C to +75°C

  Humidity 80% RH to at least +90°C

  Dimension 105 * 165 * 36 mm

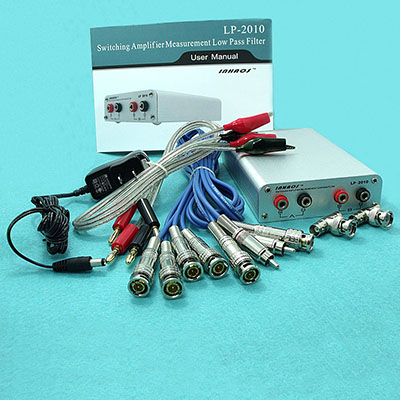

Packing List

INHAOS LP-2010 Low Pass Filter   X1

User Manual    X1

DC9V 500mA Power Supply    X1

BNC Tee Connect    X2

BNC to BNC Audio Cable     X1

RCA to BNC Audio Cable     X1

Speaker Cable   X2

File Name File Size Release Date Click
AES17-1998 (r2004) 234.49 KB 04/18/2011 2,301
LP-2010 DataSheet 809.2 KB 04/18/2011 2,243
LP-2010 Users Manual 662.17 KB 04/11/2011 2,253
