RF-2410U 2.4GHz USB Dongle - 2.4 G RF Modules - C8051F321 + BK2411

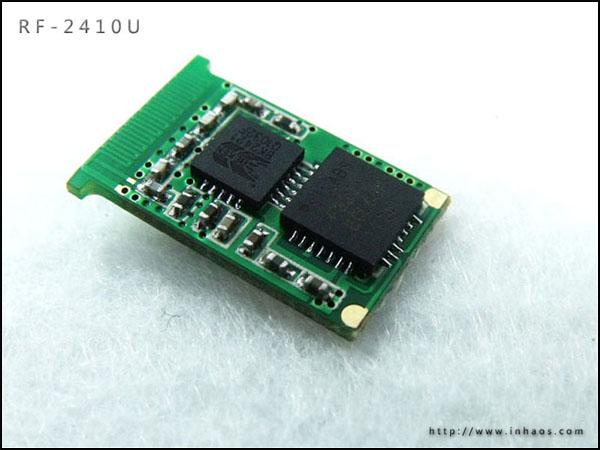

    Please note that this is NOT a Bluetooth receiver, it is an USB 2.4G Wireless dongle can be secondary developed. It's composed by C8051F321 MCU and BK2421 RF with built-in Bootloader, which can download the user program via the USB, also can be connected to any of RF-2400 and RF-2410 series products.



Introduction:

   After RF-2400 cost-effective wireless modules, INHAOS launches the RF-2410 series modules. RF-2410 series modules is a SOB (System On Board) module based on RF-2400 modules adding MCU.RF-2410 series modules is a cost-effective module with more powerful and convenient RF solutions.

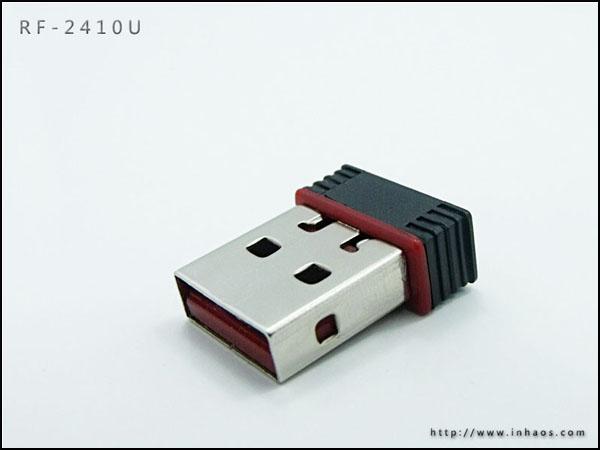

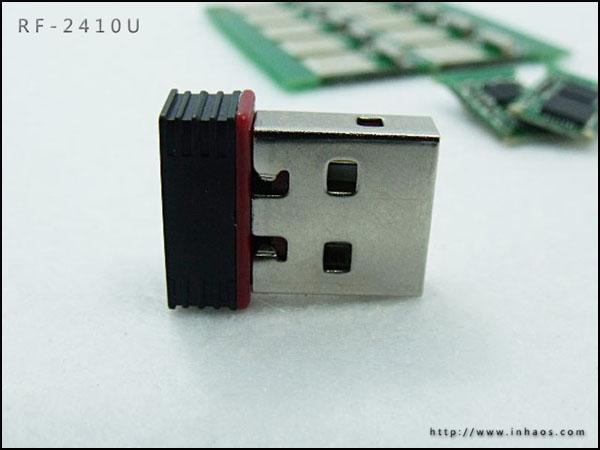

    RF-2410U uses Silicon labs C8051F321 MCU as the main control unit.RF-2410U is designed as a compact USB Nano Dongle, convenient and easy to carry. To facilitate the users to update software, the RF-2410U has a built-USB Bootloader, the user can download the application very easily via USB.



RF-2410U is major for providing a channel connected to a PC of INHAOS RF-2400/RF-2410 products.RF-2410U can be widely used for data transmission, wireless data collection and other fields. Users can even directly use RF-2410U as part of the product to solve the wireless data and PC connectivity problems.



Feature:

  ■ Adopt BK-2421 chip, can be connected to any of RF-2400/RF-2410 series products

  ■ Adopt C8051F321 MCU, 25MIPS, 16KB Flash, 1280B RAM

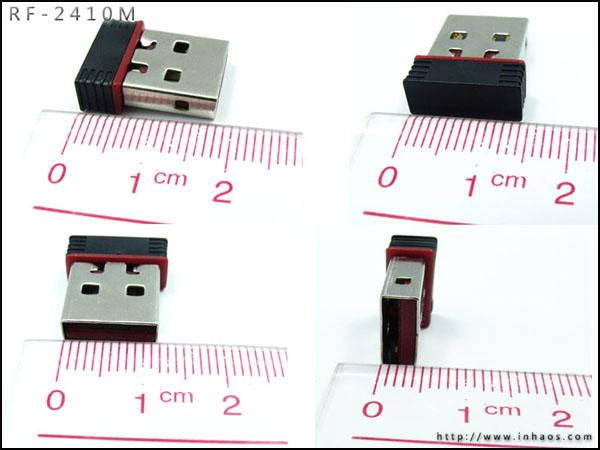

  ■ The Nano Dongle Compact design for easy portability

  ■ Built-in Bootloader, you can download the firmware directly via the USB

  ■ Matured C8051F321 development environment, with rich reference resource, and easy development

  ■ High cost-effective



Applications

  ■ Wireless Serial

  ■ Adding data transmission system to existing RF

  ■ Wireless audio and video transmission

  ■ Wireless Data Collection

  ■ Low-cost, low-power wireless networking

  ■ Wireless sensor node (WSN)
