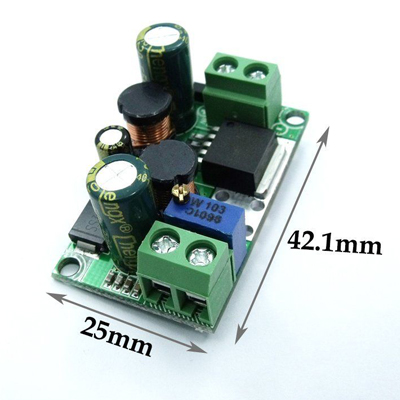

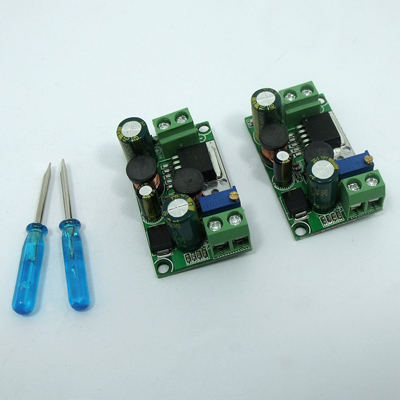

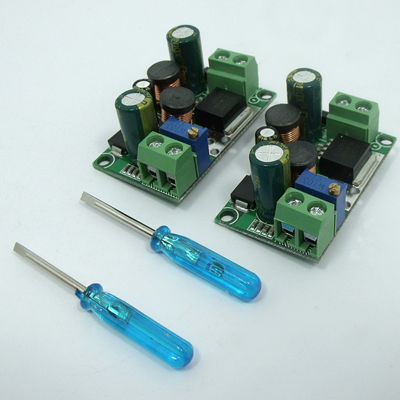

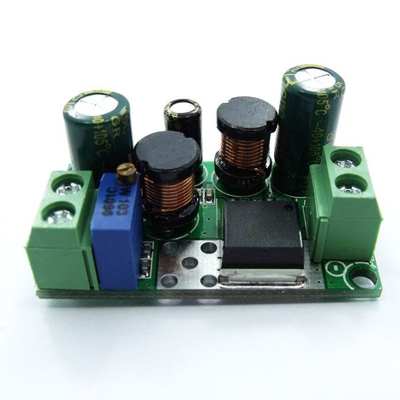

PM-6009DU 45V Buck-Boost Step Up Down Convertor

Boost Circuit topology
Fixed 400KHz Switching Current
1.25V to 45V Output Voltage Range
Excellent Line and Load regulation
Wide 5V to 32V Input Voltage Range
Buck/Boost (SEPIC) Circuit topology
Adopt XLSEMI 400KHz 60V 4A Switching Current DC/DC Converter

Features

Adopt XLSEMI 400KHz 60V 4A Switching Current DC/DC Converter

PM-6009DU: Buck/Boost (SEPIC) Circuit topology

   PM-6009B: Boost Circuit topology

Wide 5V to 32V Input Voltage Range

1.25V to 45V Output Voltage Range

Fixed 400KHz Switching Current

Excellent Line and Load regulation

High efficiency:

PM-6009DU: up to 82.5% (SEPIC mode)

PM-6009B: up to 93.4% (Boost Mode)

Onboard Soft-Start Function


Parameters

Input Voltage Range: 5 to 32V

Output Voltage Range:   PM-6009DU: 1.25 to 45V

                                              PM-6009B: Vin to 45V

Max Switching Current: 4A

Operation Temperature: -40 to 125°C

Storage Temperature: -65 to 165°C




File Name File Size Release Date Click
DOC-PM-6009-V01-20151116 183.07 KB 11/21/2015 357
DS-PM-1625-XXXX-V01-20151125 195.05 KB 12/17/2015 937
DOC-PM-6009M-V01-20160111 521.9 KB 01/20/2016 549
