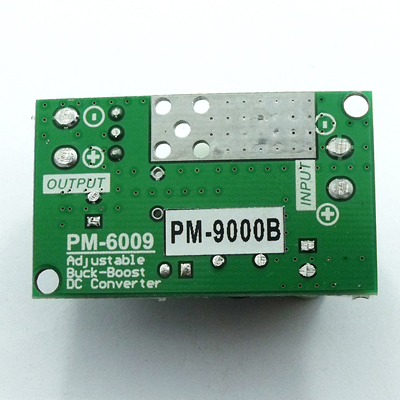

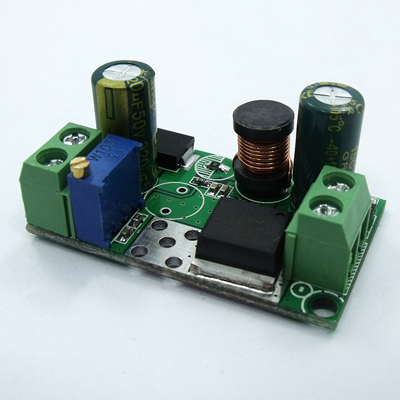

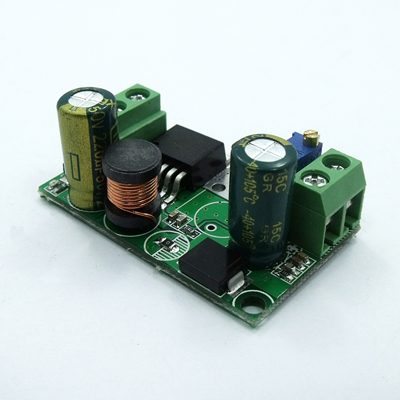

PM-6009B 45V Boost Step Up Down Convertor

Boost Circuit topology
Fixed 400KHz Switching Current
1.25V to 45V Output Voltage Range
Wide 5V to 32V Input Voltage Range
Adopt XLSEMI 400KHz 60V 4A Switching Current DC/DC Converter



Features

 Adopt XLSEMI 400KHz 60V 4A Switching Current DC/DC Converter

 PM-6009DU: Buck/Boost (SEPIC) Circuit topology

   PM-6009B: Boost Circuit topology

 Wide 5V to 32V Input Voltage Range

 1.25V to 45V Output Voltage Range

 Fixed 400KHz Switching Current

 Excellent Line and Load regulation

 High efficiency:

PM-6009DU: up to 82.5% (SEPIC mode)

PM-6009B: up to 93.4% (Boost Mode)

 Onboard Soft-Start Function


Parameters

 Input Voltage Range: 5 to 32V

 Output Voltage Range:   PM-6009DU: 1.25 to 45V

                                              PM-6009B: Vin to 45V

 Max Switching Current: 4A

 Operation Temperature: -40 to 125°C

 Storage Temperature: -65 to 165°C




File Name File Size Release Date Click
DOC-PM-6009-V01-20151116 183.07 KB 11/21/2015 285
DS-PM-1625-XXXX-V01-20151125 195.05 KB 12/17/2015 787
DOC-PM-6009M-V01-20160111 521.9 KB 01/20/2016 459
