CB-LC-2000 Connect Board for LC-2000(PA)-P2P

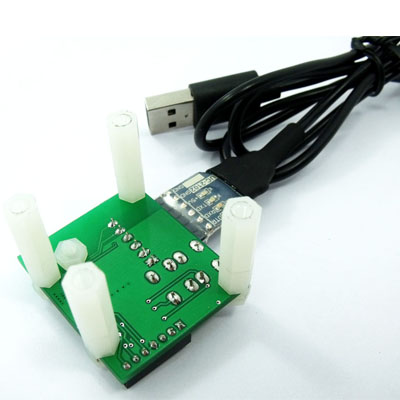

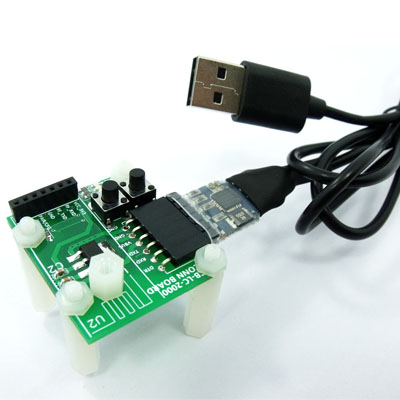

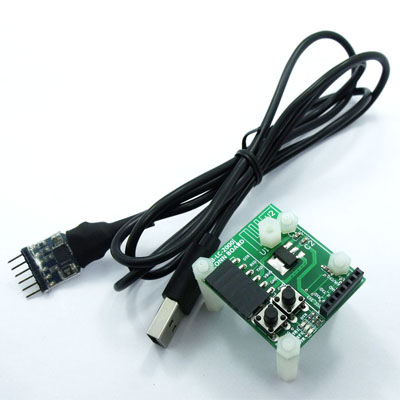

CB-LC-2000 --- Connection Board for LC-2000(PA)-P2P

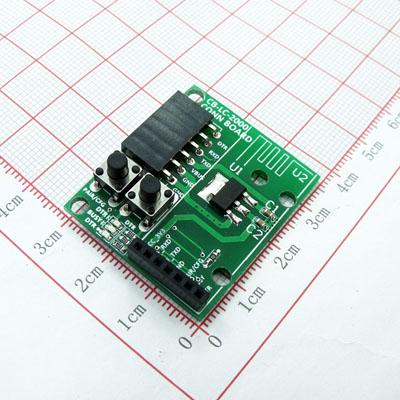

One the CB-LC-2000 , here have two buttons and 3 Leds , the function as below:

    1, DTR Button: press this button to pull DTR pin low, in SLAVE side you should see DTR LED is OFF. When you connected SLAVE to a UNO R3 , you can reset the UNO by press this button.
    2, CFG button: this button is connected to FUN pin , when you want sent configuration command from PC to Module , you can press and hold this button , and then sent command from the PC. Long press this button , the module will entry pairing mode.
    3, DTR LED: indication DTR pin’s status , when you press DTR button on MASTER side , the SLAVE side LED will be OFF.
    4, BUSY LED: indication BUSY status, this LED light means module is busy.

    5, POWER LED: when module powered the LED will be light.

Please Notice


    If you only use LC-2000(PA)-P2P for normal UART communication , it no matter who is master and who is slave.
    If user use it with Arduino and want to upload sketch by remote , the PC side must use Master and Arduino side must use Slave.


About LC-2000(PA)-P2P


    LC-2000-P2P: 0dBm, Low power , 20 to 30m distance( Click to View )
    LC-2000PA-P2P: 20dBm , 200 to 300m distance( Click to View )

File Name File Size Release Date Click
RF UNO CORE Datasheet 653.48 KB 04/01/2016 3,666
INHAOS COMMPORT LOOPBACK TEST V1.1 27.54 KB 06/29/2011 4,554
LC-2000-Debugger Release V11 867.96 KB 08/05/2016 2,505
AN-16008_LC-3000(PA) Debugger 2.06 MB 06/13/2016 2,382
LC3000 Arduino Libraries 120.7 KB 06/04/2016 3,040
DOC-UC-3100P-V20-20180425 387.93 KB 01/07/2016 3,369
DOC-LC-2000(PA)-P2P-V13-20220302 419.16 KB 03/29/2016 2,645
