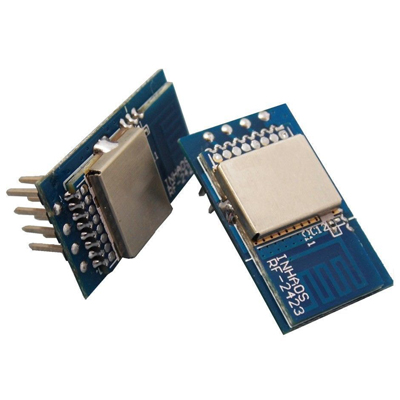

PK11 2PCS RF-2423P 2.4GHz RF Module transceiver

2400-2483.5 MHz ISM band operation
Support 250Kbps, 1Mbps and 2 Mbps air data rate
Programmable output power
Low power consumption
6 data pipes for 1:6 star networks
1.9V to 3.6V power supply 4-pin SPI interface with maximum 8 MHz clock rate

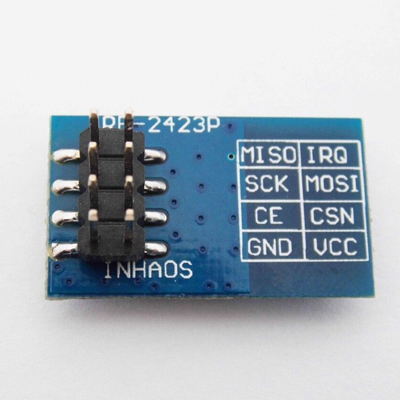

8Pin 2.54mm connector easy for DIYer



Instruction:
   The RF-2400 series module which was launched by INHAOS is favored by many users, and this series of products using high performance RF SOC BK-2421. Beken has released an updated version of BK-2423 which has better RF performance and lower power in 2013, and BK-2423 also support 250Kbps data rate in which can get a farther communication distance and more stable RF performance.

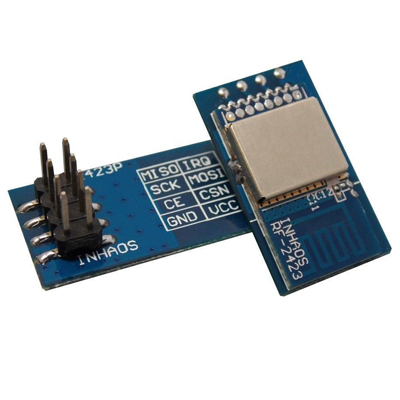

   Therefore, INHAOS launched the RF-2423 series module which using the patch installation process, it is suitable for large-scale production. For DIYer, we launched RF-2423P. This RF-2423P module add an 8Pin 2.54mm Connector, all the users can use the DIY connection easily.

Features:
   2400-2483.5 MHz ISM band operation
   Support 250Kbps, 1Mbps and 2 Mbps air data rate
   Programmable output power
   Low power consumption
   Variable payload length from 1 to 32bytes
   Automatic packet processing
   6 data pipes for 1:6 star networks
   1.9V to 3.6V power supply
   4-pin SPI interface with maximum 8 MHz clock rate

   8Pin 2.54mm connector easy for DIYer


Application:

   Wireless PC peripherals
   Wireless mice and keyboards
   Wireless gamepads
   Wireless audio
   VOIP and wireless headsets
   Remote controls
   Consumer electronics
   Home automation
   Toys

   Personal health and entertainment
