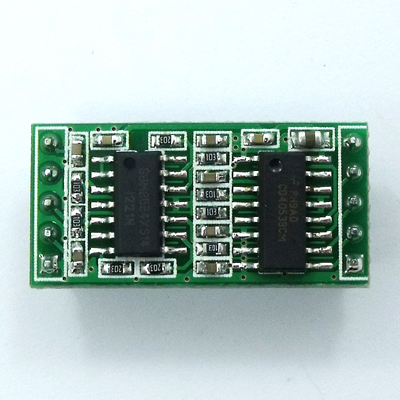

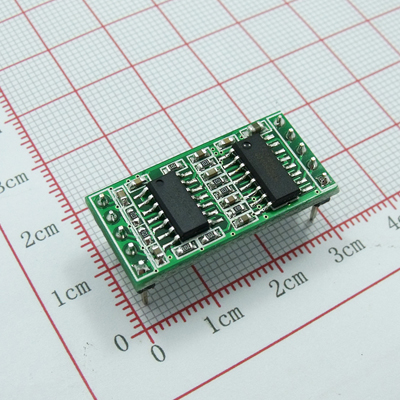

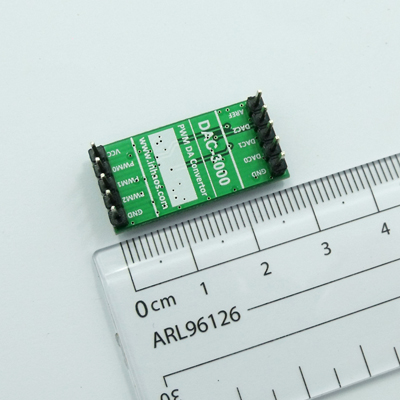

DAC-3000, Low Cost PWM to DAC Module

1, Low Cost , easy to reach high resolutions DAC (depended on the PWM resolutions)
2, The Accuracy only depended on the REF voltage accuracy
3, Add Precision digital to analog convertor in any low cost system with PWM signal
4, The output Full scale voltage is depended on the VREF
5, The PWM digital noise will not impact the analog output signal



Low Cost PWM to DAC Module

1, Low Cost , easy to reach high resolutions DAC (depended on the PWM resolutions)

2, The Accuracy only depended on the REF voltage accuracy

3, Add Precision digital to analog convertor in any low cost system with PWM signal

4, The output Full scale voltage is depended on the VREF

5, The PWM digital noise will not impact the analog output signal



Specifications

Signal Outputs

   Analog Outputs

Number of Channels :     3

Full Scale Range :         0 to VREF

Resolutions :            Depended on the PWM resolutions

Supply Voltage:          3 to 5.5V

VREF Voltage:            3 to 5.5V (Do not higher than VCC)

Support PWM Frequency:  100Hz to 10KHz

Output Minimum Voltage:  6mV

Output Max Voltage:      VCC – 100mV

Output Current:          30mA


File Name File Size Release Date Click
DOC-DAQ-1000-V02-20151110 546.36 KB 10/29/2015 947
