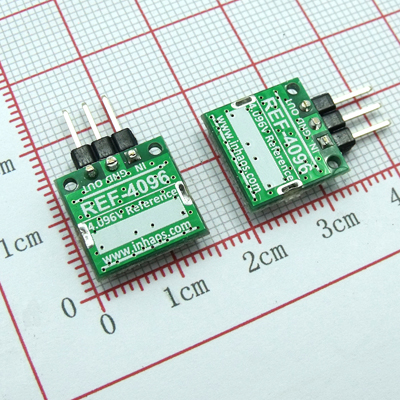

REF-4096 4.096V 50ppm Precision Voltage Reference

Precision Voltage References
Output voltages: 4.096V
MCP1541 from MicroChip

4.096V 50ppm Precision Voltage References

Features

  1, Precision Voltage References

  2, Output voltages: 4.096V

  3, Initial Accuracy:±1%(Max)

  4, Temperature Drift: ±50ppm/°C(Max)

  5, Output Current Drive: ± 2mA

  6, Maximum Input Current: 100uA @ 25°C

  7, Industrial Temperature Range: -40 to +85°C



Specification

  Input Voltage Range :  4.3 to 5.5V

  Vout: 4.055V to 4.137V

  Output Voltage Drift:  ±50ppm/°C

  Long-term output stability:  2ppm/Hr

  Output Voltage Hysteresis:  115ppm

  Max Load Current: ±8mA

  Chip: MCP1541 from MicroChip

  Operation Temperature :  0°C to 55°C

  Operating Humidity :  0 to 90% non-condensing

  Storage Temperature :  -20°C to 65°C

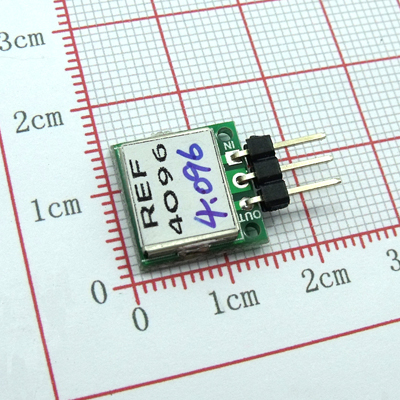

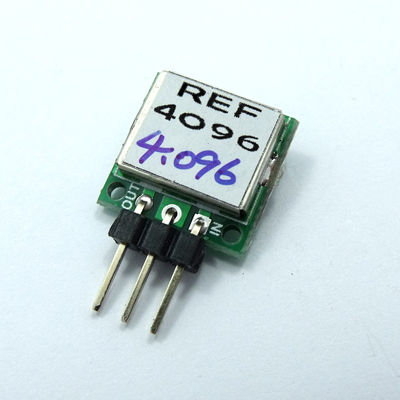

Since the output voltage range is 4.055V to 4.173V , we will measurement the accurate voltage and written on the shielding box , please do not miss this import information.


File Name File Size Release Date Click
DS-CS-4173-EN Datasheet *pdf 187.06 KB 07/15/2014 2,074
DS-REF-431-EN Datasheet *pdf 215.09 KB 07/15/2014 1,941
DOC-DAQ-1000-V02-20151110 546.36 KB 10/29/2015 544
AN-DAQ-1000-001-V10-20151129 1.09 MB 11/22/2015 602
AN-DAQ-1000-001-V10-20151129 3.9 MB 11/22/2015 467
DOC-DAC-3000-V01-20151031 355.2 KB 10/31/2015 516
DOC-REF-4096-V01-20151103 280.19 KB 11/04/2015 539
DOC-REF-586-V01-20151203 308.3 KB 12/04/2015 317
