Features
ATMega328p core module
Standard USB2Serial interface for uploading and debugging
Onboard 2.4GHz RF Module (Optional)
100% Arduino development environment

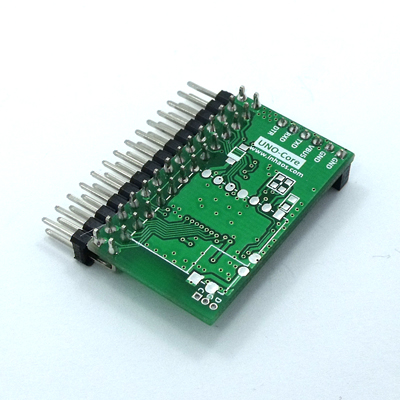

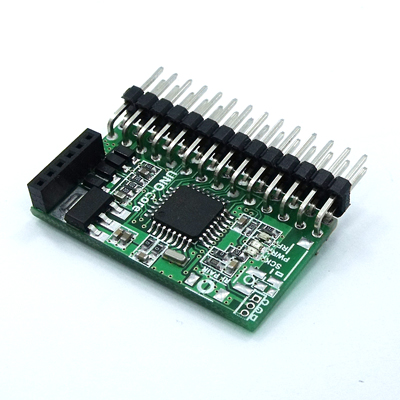

Vertical double row connector, minimum size on the main board
Full UNO IO supported
Parameters
MCU: ATMega328p 32K Flash 2K SRAM 10bit ADC
Working Voltage : 3.3V with onboard LDO
Input Voltage: DC 4.5 to 12V
3.3V Output Current : 300mA MAX
PCBA Size: 20 x 35mm
Bootloader preprogramming : Arduino UNO R3
Upload sketch and communication
RF UNO Core can be uploading sketch and communication via 2.4GHz RF connection , user need a USB Dongle on PC side and we call it LC-2000U , we will release this product in Jan.2016.

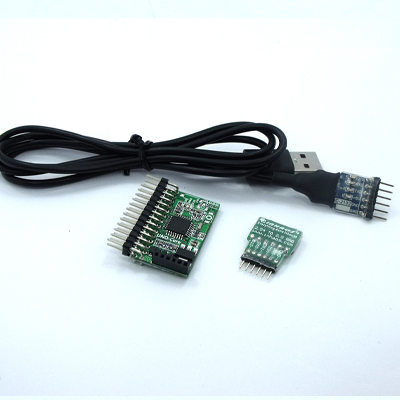

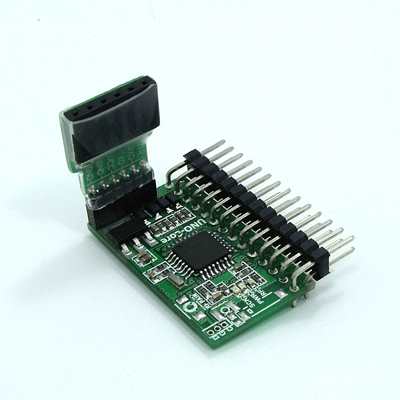

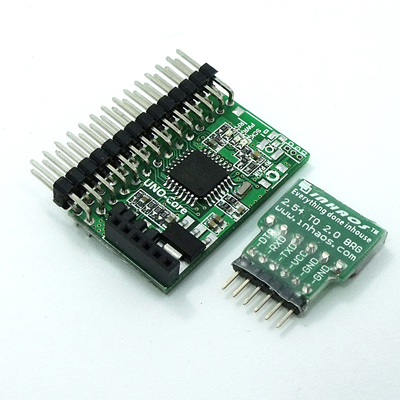

Both RF UNO Core and UNO Core have a onboard UART connector , it’s a 6-Pin 2.0mm Female connector, user can be use stand USB2Serial Light cable to upload and communication with a 2.5mm to 2.0mm convertor. We also provide UC-2102 kit for this usage.
File Name | File Size | Release Date | Click |
AN_16006_DAQ-1000 Step by Step Guide | 482.99 KB | 05/10/2016 | 3,168 |
DOC-UNO-CORE-V01-20151228 | 408.38 KB | 12/29/2015 | 2,922 |
AN-16001-LC-2000(PA)-P2P Remote Sketch Upload Demo | 484.98 KB | 04/09/2016 | 2,414 |
AN-16002-LC-2000(PA)-P2P Remote Control | 979.91 KB | 04/09/2016 | 1,683 |
AN-16003-Arduino Lite+LC-2000 Remote Contorl | 380.72 KB | 04/09/2016 | 2,431 |
RF UNO CORE Datasheet | 653.48 KB | 04/01/2016 | 3,511 |
AS-6408 Analog Digital Multiplexer Datasheet | 1000.68 KB | 04/07/2016 | 2,661 |
AS-6408 Analog Digital Multiplexer Demo Code | 708.97 KB | 04/07/2016 | 2,242 |
DS-MD-328D-V01-20160412 MD-328D MCU Datasheet | 599.83 KB | 04/12/2016 | 4,820 |
Develop the MD-328D using AVR Studio | 1.65 MB | 07/21/2016 | 3,781 |
UM-MASSDUINO-V3.0-EN MassDuino User Maunal | 764.82 KB | 04/12/2016 | 5,917 |
(MassDuino) CH341 USB to Serial Driver | 1.49 MB | 11/21/2015 | 4,432 |
AN-16009_2.54mm to 2.0mm Convertor for USB to UART Cable | 235.85 KB | 07/20/2016 | 4,391 |
DOC-MASSDUINO-UNO-CORE-V01-20160416 | 409.6 KB | 04/16/2016 | 3,263 |
DOC-UNO-LC-V03-20160415 Massduino_BUONO UNO LC Datasheet | 408.05 KB | 11/21/2015 | 3,103 |
AN-16003-Massduino-introduction | 714.84 KB | 04/18/2016 | 3,411 |
AN-16004-Massduino-UNO-CORE | 800.43 KB | 04/18/2016 | 3,056 |
AN_16005_Arduino Development Board Selection Guide | 513.77 KB | 05/10/2016 | 6,400 |
DOC-UC-340G-V01-20160507 UC-340G Datasheet | 218.84 KB | 05/10/2016 | 2,471 |
AN_16007_AC-5000 AC to DC Power Supply Burn-in Test System | 1.02 MB | 05/12/2016 | 2,440 |
ARDUINO-AN-140001-RFID-RC522 | 10.96 MB | 08/22/2016 | 3,856 |
DOC-UC-3100P-V20-20180425 | 387.93 KB | 01/07/2016 | 3,226 |
UM-MASSDUINO-V4.6r2-EN | 1.23 MB | 08/23/2018 | 3,619 |
Arduino - Massduino_Support_Package_V51 | 3.93 MB | 04/12/2016 | 8,969 |
