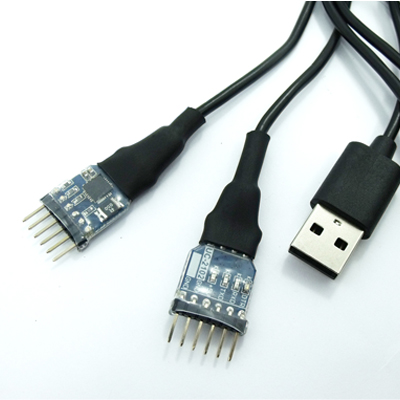

UC-2102 USB2SERIAL Cable

UC-2102
Main IC: CP-2102
Arduino upload sketch
Fully compatible with Arduino USB2.0 Serial Light



Introduce:

   UC-2102 is used for Arduino upload sketch, it is fully compatible with Arduino USB2.0 Serial Light, but more compact, It'€™s can be working with all Arduino main processor. The main IC of UC-2102 is CP-2102, it is from Silicon Labs. So the drivers are interchangeable.



Features:

   The USB to UART Bridge IC is very mature, its performance is stable and compatibility is good.

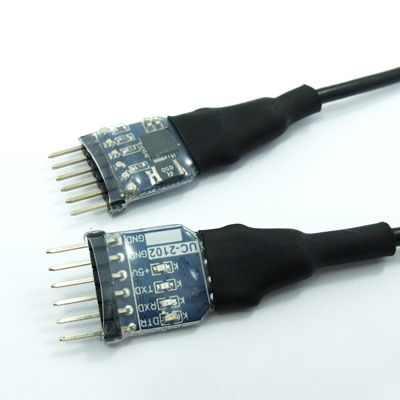

   Status lights include DTR/Vbus / RXD / TXD activity.

   Easy to connect to the Arduino Ethernet / Mini / Mini Pro /LilyPad Simple / Fio , and all BUONO LITE serials.

   USB cable directly solder to the PCBA , so it'€™s more stable.

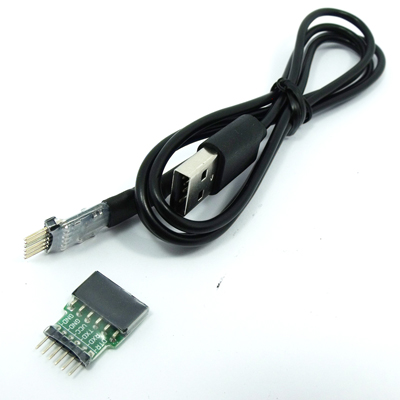

   The standard configuration: Add a 2.45mm to 2.0mm connecter.

   Pin to Pin compatible with Arduiono USB2.0 Serial Light.

   Modify female connector to male, most female header will be poor connection after many times.







File Name File Size Release Date Click
BUONO-UNO-LITE-R3-DATASHEET 244.5 KB 09/05/2013 2,686
BUONO-USB2SERIAL-DATASHEET 342.45 KB 09/05/2013 2,794
DS-UC-2102-V01 271.39 KB 04/13/2015 2,449
DOC-UNO-CORE-V01-20151228 408.38 KB 12/29/2015 1,496
SCH-UM-UNO-V01 UM-UNO Schematic 60.89 KB 01/13/2016 1,427
RF UNO CORE Datasheet 653.48 KB 04/01/2016 1,661
DOC-MASSDUINO-UNO-CORE-V01-20160416 409.6 KB 04/16/2016 1,546
AN-16003-Massduino-introduction 714.84 KB 04/18/2016 1,638
AN-16004-Massduino-UNO-CORE 800.43 KB 04/18/2016 1,491
INHAOS COMMPORT LOOPBACK TEST V1.1 27.54 KB 06/29/2011 3,080
DOC-MASSDUINO-NANO-V01-20160602 220.99 KB 06/02/2016 1,532
ARDUINO-AN-140001-RFID-RC522 10.96 MB 08/22/2016 2,005
DOC-UC-3100P-V20-20180425 387.93 KB 01/07/2016 1,128
UM-MASSDUINO-V4.6r2-EN 1.23 MB 08/23/2018 438
