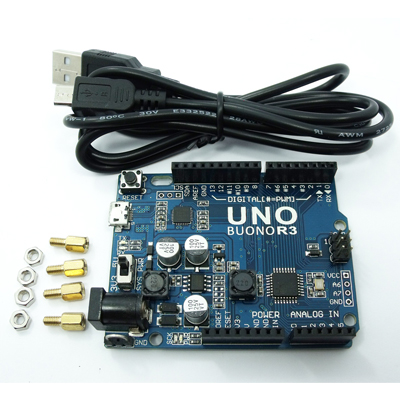

BUONO UNO R3 Arduino compatible

BUONO UNO R3
Arduino compatible
Inherits all of Arduino UNO’s features
Compatible to Arduino UNO
More visible location of indicator LEDs



INTRODUCTION

   BUONO UNO R3 is an Arduino compatible board, It’s based on Arduino UNO R3 design, So you can use BUONO UNO as Arduino UNO, All Code, shield and IDE for Arduino UNO R3 are also valid on BUONO UNO, Some visible improvement on hardware make BUONO more flexible and easier use , For example: 3.3V or 5V IO selectable allow you connect some 3.3V modules (such as XBee) to BUONO directly.



FEATURES

   Inherits all of Arduino UNO’s features

   Compatible to Arduino UNO/Duemilanove’s pin layout, screw hole and dimensions

   3.3V or 5V operating voltage selectable

   More visible location of indicator LEDs

   Evolved with SMD components

   Digital I/O pins 14 (of which 6 provied PWM output)

   Flash memory 32KB or which 0.5KB used by bootloader

   SRAM 2KB

   EEPROM 1KB

   Clock speed 16MHz

   Micro USB connection make the cable can be mixed use with most digital products such as cell phone

   5V DC/DC provide 95% efficiency

   6V to 23V width rang input

   Provide max 1.8A for peripheral circuits

   LC Low pass filter for AVCC make ADC much stable

   Ground terminal make measurement easier



File Name File Size Release Date Click
BUONO UNO R3 FW UPGRADE V0100 to V0200 355.09 KB 09/17/2013 3,316
2.4GHz RF UNO 4WD Mobile Car 6.48 MB 12/16/2013 2,172
US-LCD-2000-V01-EN * PDF 374.57 KB 05/11/2014 6,645
DS-CS-4173-EN Datasheet *pdf 187.06 KB 07/15/2014 3,006
BUONO-UNO-LITE-R3-DATASHEET 244.5 KB 09/05/2013 2,864
BUONO UNO R3 Datasheet *pdf 375.02 KB 09/05/2013 4,352
DOC-BUONO-MEGA 2560-R3-V01-EN 524.44 KB 04/14/2014 3,428
DS-UM-UNO-V01-EN 345.65 KB 01/12/2015 2,000
DOC-DAQ-1000-V02-20151110 546.36 KB 10/29/2015 1,209
AN-DAQ-1000-001-V10-20151129 1.09 MB 11/22/2015 1,858
AN-DAQ-1000-001-V10-20151129 3.9 MB 11/22/2015 1,347
AN_16006_DAQ-1000 Step by Step Guide 482.99 KB 05/10/2016 1,827
DOC-PB-9000-V01-20151117 302.96 KB 11/23/2015 827
DOC-UNO-CORE-V01-20151228 408.38 KB 12/29/2015 1,819
SCH-UM-UNO-V01 UM-UNO Schematic 60.89 KB 01/13/2016 1,772
RF UNO CORE Datasheet 653.48 KB 04/01/2016 2,144
DOC-MASSDUINO-UNO-CORE-V01-20160416 409.6 KB 04/16/2016 2,067
AN-16003-Massduino-introduction 714.84 KB 04/18/2016 1,987
AN-16004-Massduino-UNO-CORE 800.43 KB 04/18/2016 1,828
ARDUINO-AN-140001-RFID-RC522 10.96 MB 08/22/2016 2,500
DOC-UC-3100P-V20-20180425 387.93 KB 01/07/2016 1,694
UM-MASSDUINO-V4.6r2-EN 1.23 MB 08/23/2018 1,332
